Monitoring and Analyzing Switch Operation
Traffic Mirroring
A15
VLAN 30
10.10.30.2
VLAN 40
10.10.40.1
Switch D
VLAN 10
10.10.10.119
Traffic
Analyzer 1
Switch A
VLAN 20
10.10.20.145
VLAN 10
10.10.10.1
VLAN 20
10.10.20.1
VLAN 30
10.10.30.1
10.10.30.153
Switch B
Switch C
Server
C12
X
Traffic
Analyzer 2
B10
A10
A20

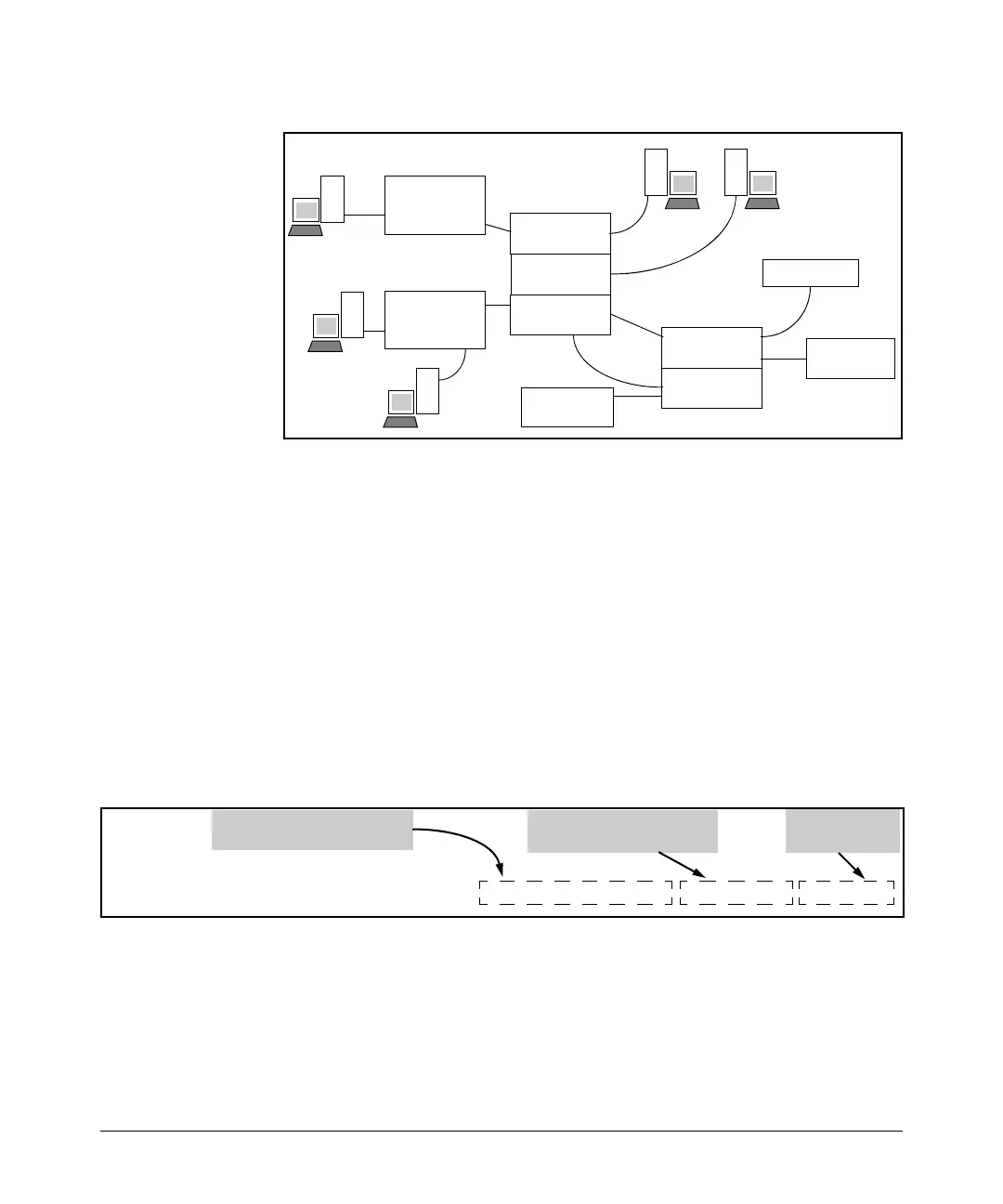

Figure B-33. Example Topology for Remote Mirroring from a Port Interface
The operator does the following:
1. On switch D, configure a mirroring destination using port B10 In VLAN 40
as the exit port.
2. Using in to specify the traffic selection criteria, configure mirroring ses-
sion 2 on switch A for port C12. (The proceeding example configured
session 1 on the same switch.)
3. Configure switch A to mirror session 2 to the destination interface for port
B10 on switch D. Use a randomly selected UDP port number of 9400.
(Refer to the Note on page B-66.) If you need information on selecting
UDP port numbers to use for remote mirroring, refer to the syntax
description on page B-43.
Switch-D(config)# mirror endpoint 10.10.10.119 9400 10.10.40.1 port b10
Mirror Session Identity from
the Source Switch (Session 2)
Mirror Session Destination
IP Address
Mirror Session
Exit Port
Figure B-34. Example of Configuring Remote Mirroring for Session 2 on the Destination Switch
B-67
