Component identification 10
Item LED description
3
Auto-bypass
4
Alarm
For more information, see "LED and audible alarm troubleshooting (on page 94)" .

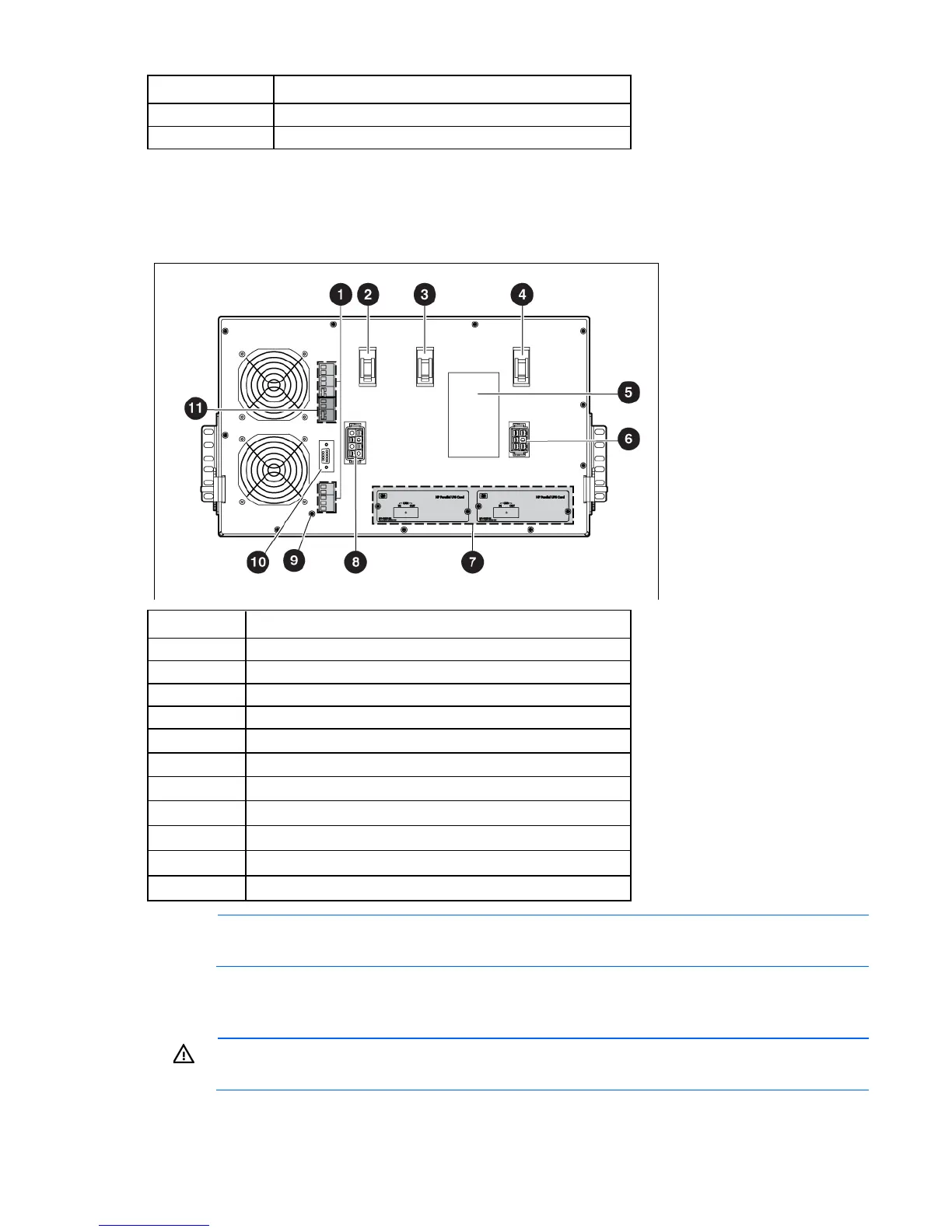

UPS rear panel
Item Description
1
Communications terminal block
2
Output circuit breaker
3
Input circuit breaker
4
Battery circuit breaker
5
Input/output power connectors
6
ERM connector
7
Option card slots
8
Output connector (only for use with output module)
9
Ground bonding screw
10
DB-9 service port
11
REPO port (NO and NC)
NOTE: For proper UPS operation, be sure that the terminal block jumpers are inserted as shown.
REPO port
WARNING: The REPO circuit is an IEC 60950 safety extra low voltage (SELV) circuit. This circuit
must be separated from any hazardous voltage circuits by reinforced insulation.

HP R1500 - UPS XR Specifications

General

Topology	Line Interactive
Input Connection	IEC 320 C14
Battery Type	Sealed Lead Acid (SLA)
Form Factor	Rackmount
Nominal Output Voltage	230V
Nominal Input Voltage	230V
Input Frequency	50/60 Hz
Typical Backup Time at Full Load	5 minutes
Transfer Time	4-8 ms
Hold-up Time	10 ms
Input Voltage Range	160 - 286 VAC
Interface Port	USB
Battery Recharge Time	3 hours
Communication Ports	USB
Waveform	Sine wave
