UPS installation 28

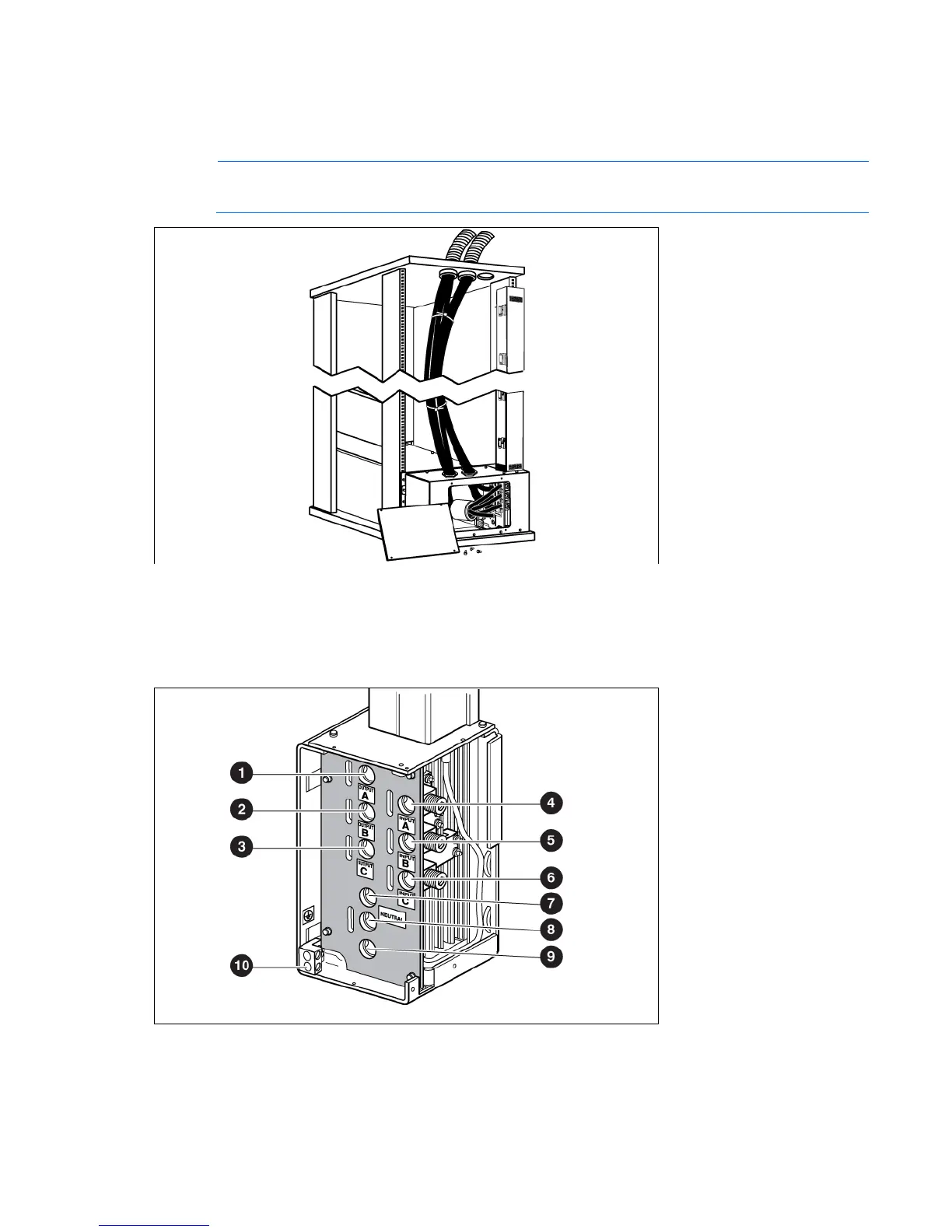

Top entry
Use a Greenlee punch to provide one or more holes in the top of the wireway. Install one or more holes in
the center rear of the top of the racks.
NOTE:
Top entry wiring does not interfere with access areas for the fans, connectors, breakers
or X-Slot cards on any HP 3 Phase UPS. See the wireway label.
Wiring the terminal block
Connect the input, output and ground wires to the Power Bus Bar terminal block. Route the three input phases
and the input neutral through the ferrite assembly.
Wire gauge depends on overcurrent protection rating required. For more information, see "Installing in a
parallel configuration (on page 26)." Reference the NEC, NFPA 70, for wire sizing.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP R1500 - UPS XR and is the answer not in the manual?

HP R1500 - UPS XR Specifications

General IconGeneral
TopologyLine Interactive
Input ConnectionIEC 320 C14
Battery TypeSealed Lead Acid (SLA)
Form FactorRackmount
Nominal Output Voltage230V
Nominal Input Voltage230V
Input Frequency50/60 Hz
Typical Backup Time at Full Load5 minutes
Transfer Time4-8 ms
Hold-up Time10 ms
Input Voltage Range160 - 286 VAC
Interface PortUSB
Battery Recharge Time3 hours
Communication PortsUSB
WaveformSine wave
