UPS installation 27

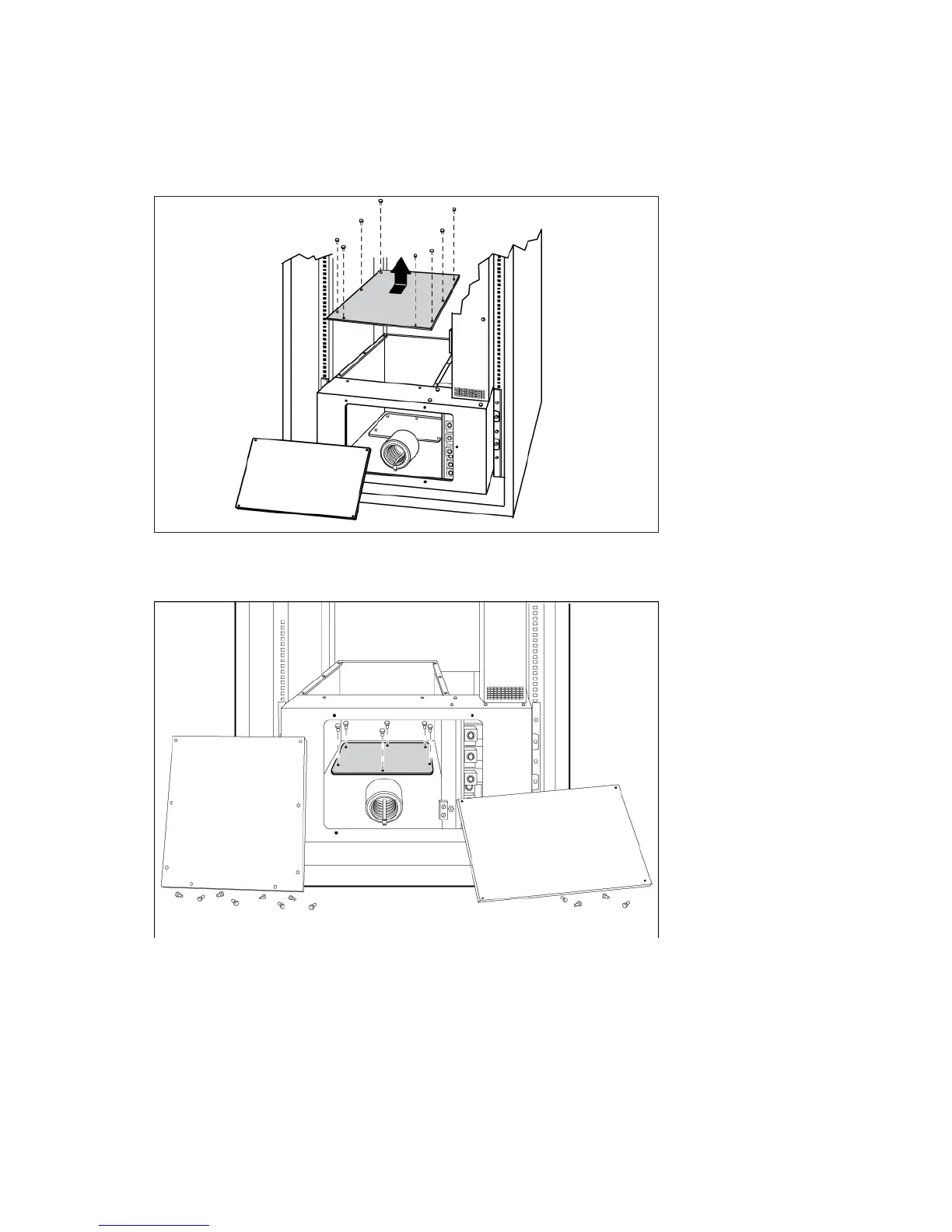

Bottom entry
1. Remove the UPS above the wireway. See "Replacing the UPS (on page 89)" .
2. Remove the eight screws on the wireway top cover and retain.
3. Slide the cover back and off the wireway and retain.
4. Remove the six screws on the conduit landing plate and retain.
5. Remove the plate and retain.
6. Use a Greenlee punch to provide one or more holes in the conduit landing plate to accommodate the
input and output wiring from the utility to the Power Bus Bar.
7. Replace the conduit landing plate.
8. Reinstall the UPS above the wireway.

HP R1500 - UPS XR Specifications

General

Topology	Line Interactive
Input Connection	IEC 320 C14
Battery Type	Sealed Lead Acid (SLA)
Form Factor	Rackmount
Nominal Output Voltage	230V
Nominal Input Voltage	230V
Input Frequency	50/60 Hz
Typical Backup Time at Full Load	5 minutes
Transfer Time	4-8 ms
Hold-up Time	10 ms
Input Voltage Range	160 - 286 VAC
Interface Port	USB
Battery Recharge Time	3 hours
Communication Ports	USB
Waveform	Sine wave
