UPS installation 20

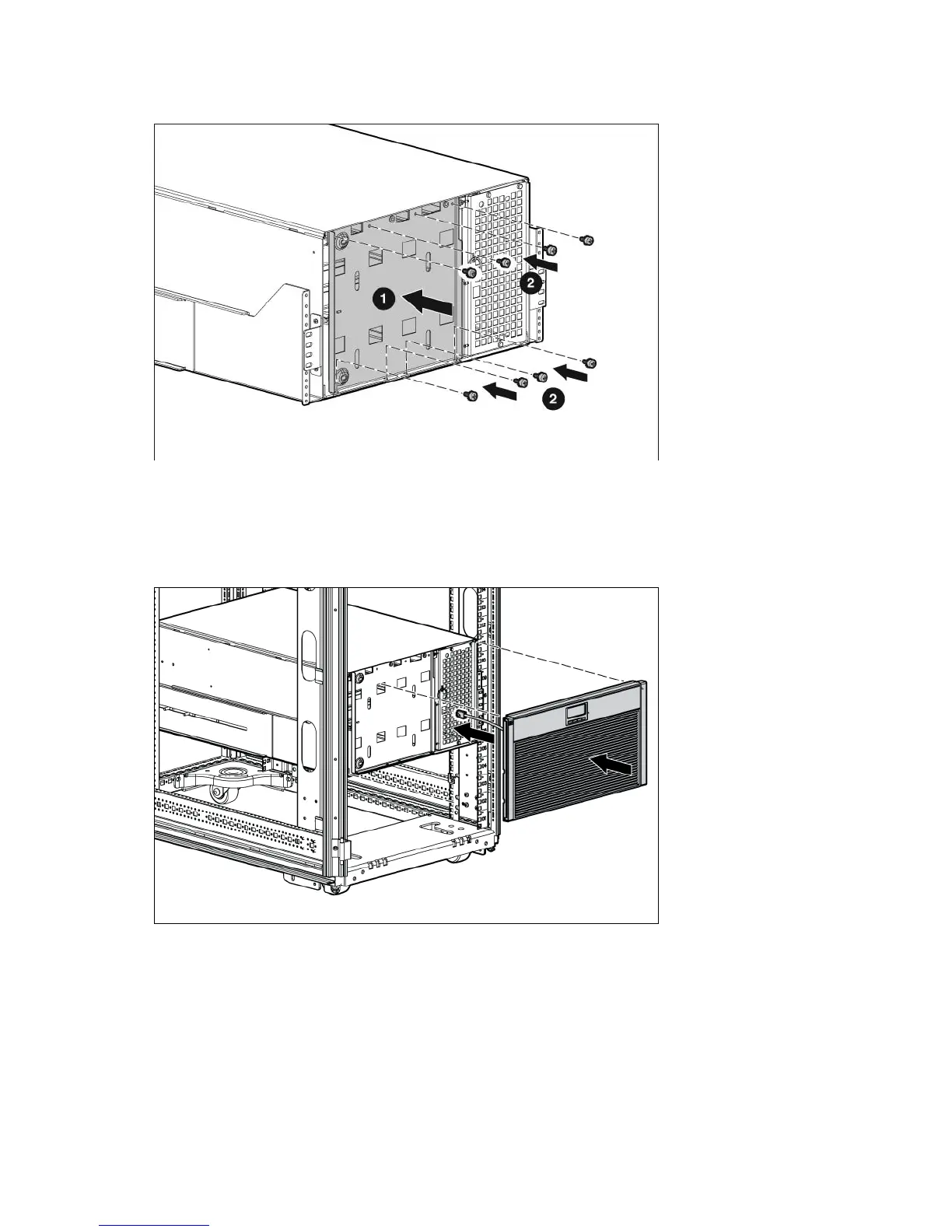

Replacing the UPS battery bracket
Attaching the UPS front bezel
1. Connect the cable to the electronics module.
2. Attach the UPS front bezel.
Connecting the ground bonding cable
The ground bonding screw is provided as an attachment point for conductors. Use a ground bonding cable
if the rack contains any conductors for the purpose of functional grounding or bonding of ungrounded metal
parts.
