UPS operations 64
UPS operations

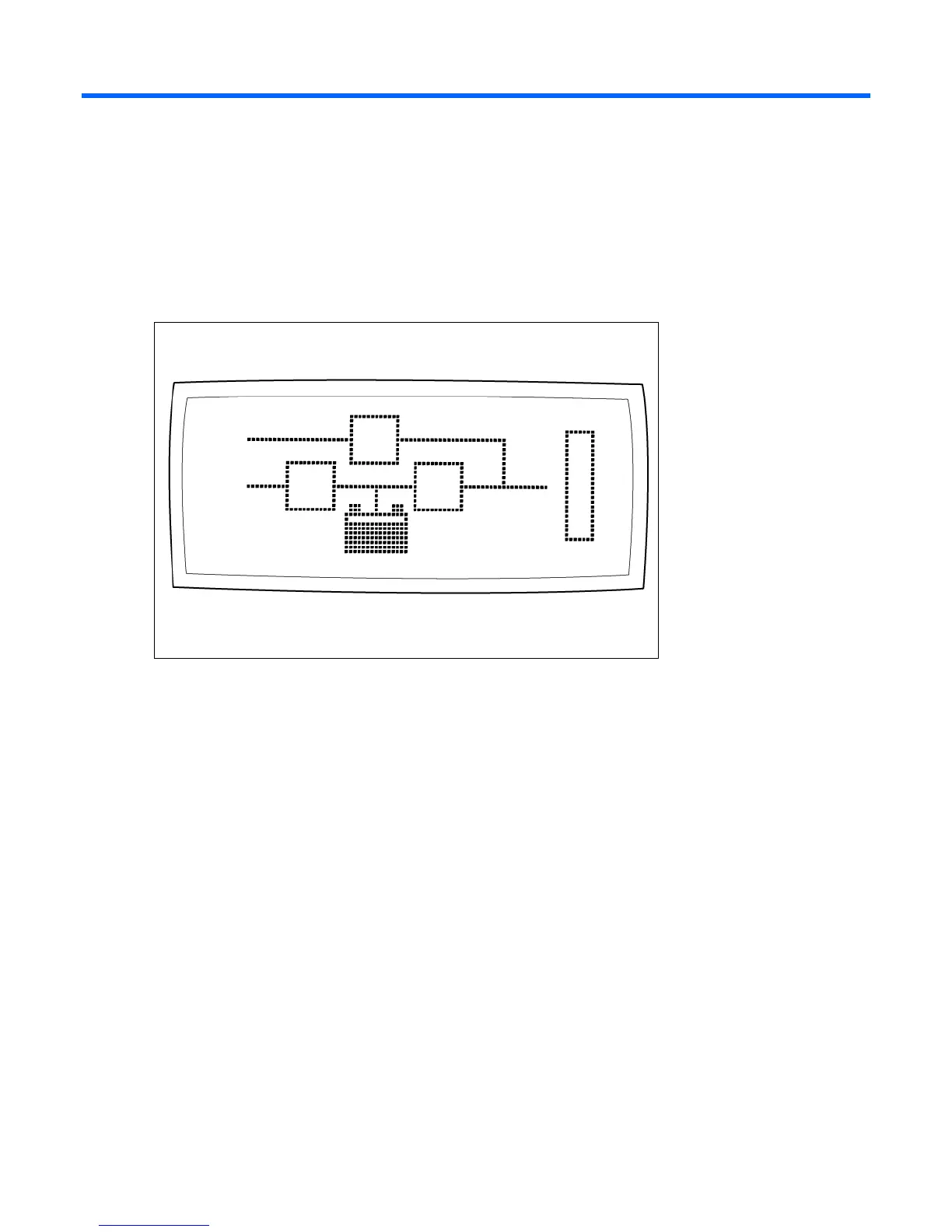

Mimic screen
The Mimic screen shows the internal components of the UPS and a real-time display of the operating status.
A thicker bar indicates that the node is energized.
Modes of operation
The UPS has four modes of operation:
Standby mode (on page 64)
Normal mode (on page 65)
Battery mode (on page 66)
Auto-Bypass mode (on page 66)
Standby mode
In Standby mode:
No power is available at the UPS output receptacles.
The UPS charges the batteries as necessary.
The UPS can be placed in Standby mode when the UPS is in Normal mode (on page 65).
To place the UPS in Standby mode:
1. Power down the UPS.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP R1500 - UPS XR and is the answer not in the manual?

HP R1500 - UPS XR Specifications

General IconGeneral
TopologyLine Interactive
Input ConnectionIEC 320 C14
Battery TypeSealed Lead Acid (SLA)
Form FactorRackmount
Nominal Output Voltage230V
Nominal Input Voltage230V
Input Frequency50/60 Hz
Typical Backup Time at Full Load5 minutes
Transfer Time4-8 ms
Hold-up Time10 ms
Input Voltage Range160 - 286 VAC
Interface PortUSB
Battery Recharge Time3 hours
Communication PortsUSB
WaveformSine wave
