HP R1500 - UPS XR - UPS Front Panel Controls and Indicators

Component identification 9

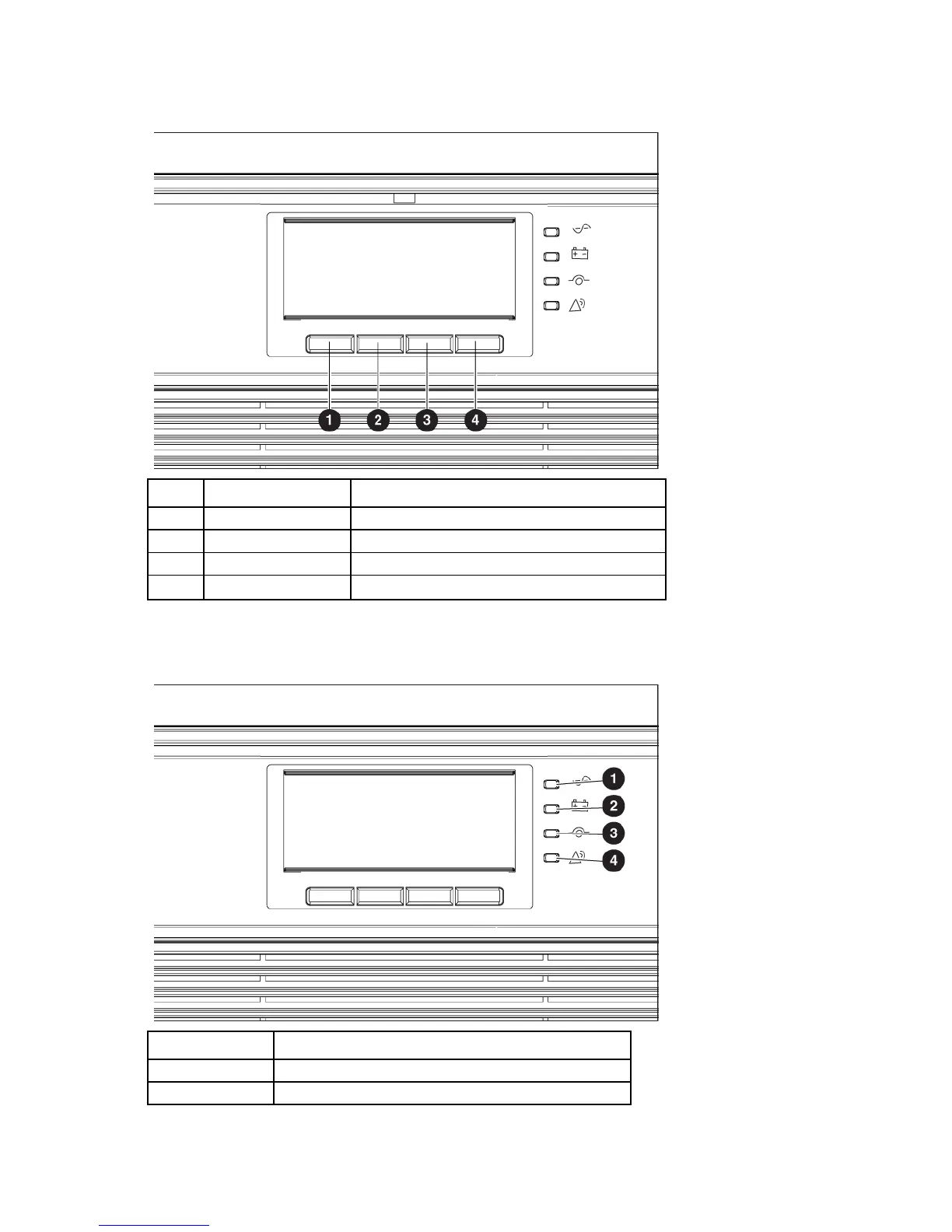

UPS front panel controls
Item Description Function
1
Left arrow or ESC Cancel/return to the previous menu
2
Up arrow Scroll through the menu structure
3
Down arrow Scroll through the menu structure
4
Right arrow or enter Select an option
UPS front panel LED indicators
Item LED description
1
Power On
2
On Battery
