Communication 74
Communication

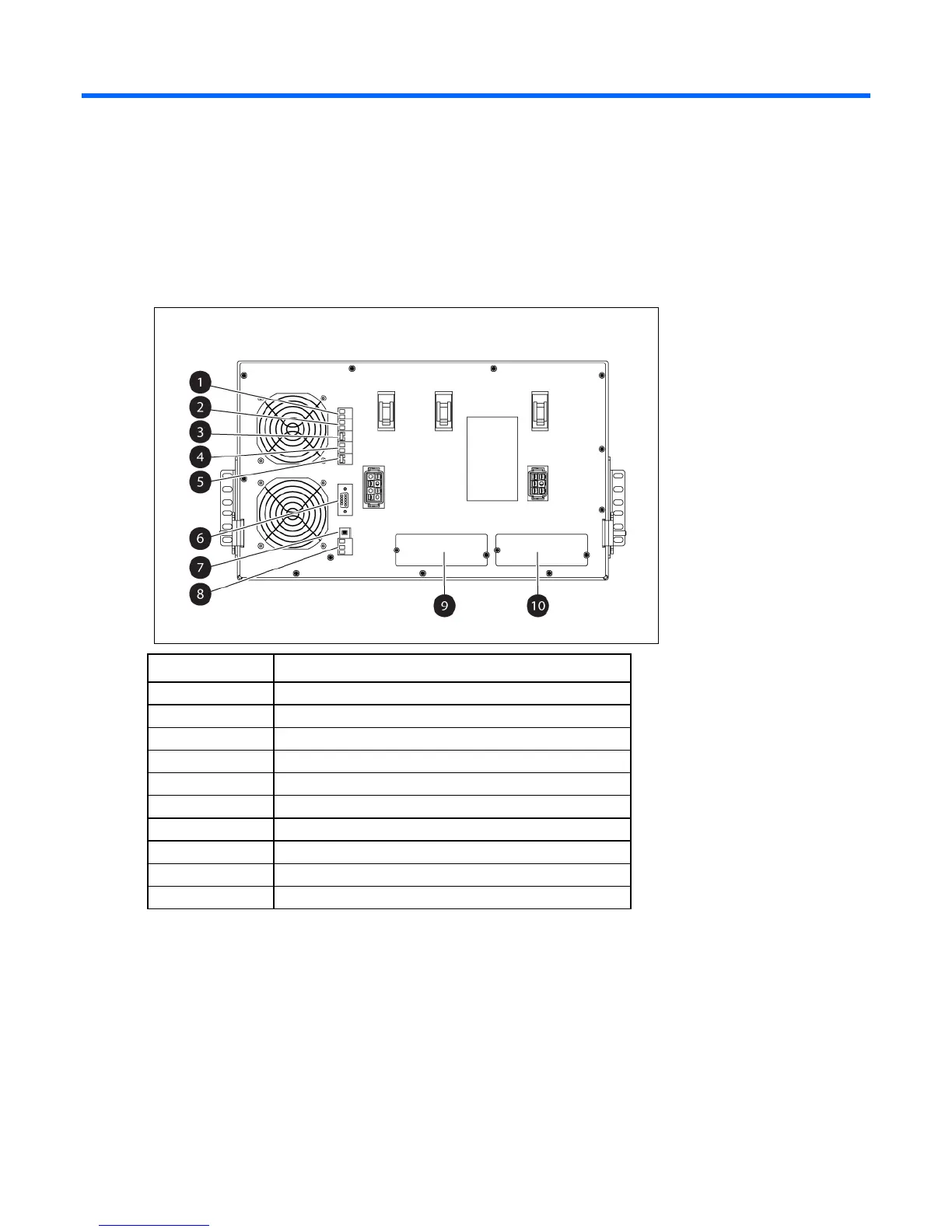

Installing communication options and control
terminals
Item Description
1
Signal input 1
2
Signal input 2
3
Standalone/parallel
4
REPO (normally open)
5
REPO (normally closed)
6
DB-9 communication port
7
Redundant signal wiring (for parallel use only)
8
Relay output contacts
9
Option card bay 1
10
Option card bay 2
To install the communication options and control terminals:
1. Install the appropriate option card and/or necessary cable(s).
2. Connect the cables to the appropriate locations.
For detailed information, see "Communication options (on page 75)" or "Control terminals (on page
76)."
3. Route and tie the cable(s) out of the way.
4. Power up the UPS.

HP R1500 - UPS XR Specifications

General

Topology	Line Interactive
Input Connection	IEC 320 C14
Battery Type	Sealed Lead Acid (SLA)
Form Factor	Rackmount
Nominal Output Voltage	230V
Nominal Input Voltage	230V
Input Frequency	50/60 Hz
Typical Backup Time at Full Load	5 minutes
Transfer Time	4-8 ms
Hold-up Time	10 ms
Input Voltage Range	160 - 286 VAC
Interface Port	USB
Battery Recharge Time	3 hours
Communication Ports	USB
Waveform	Sine wave
