ERM installation 60

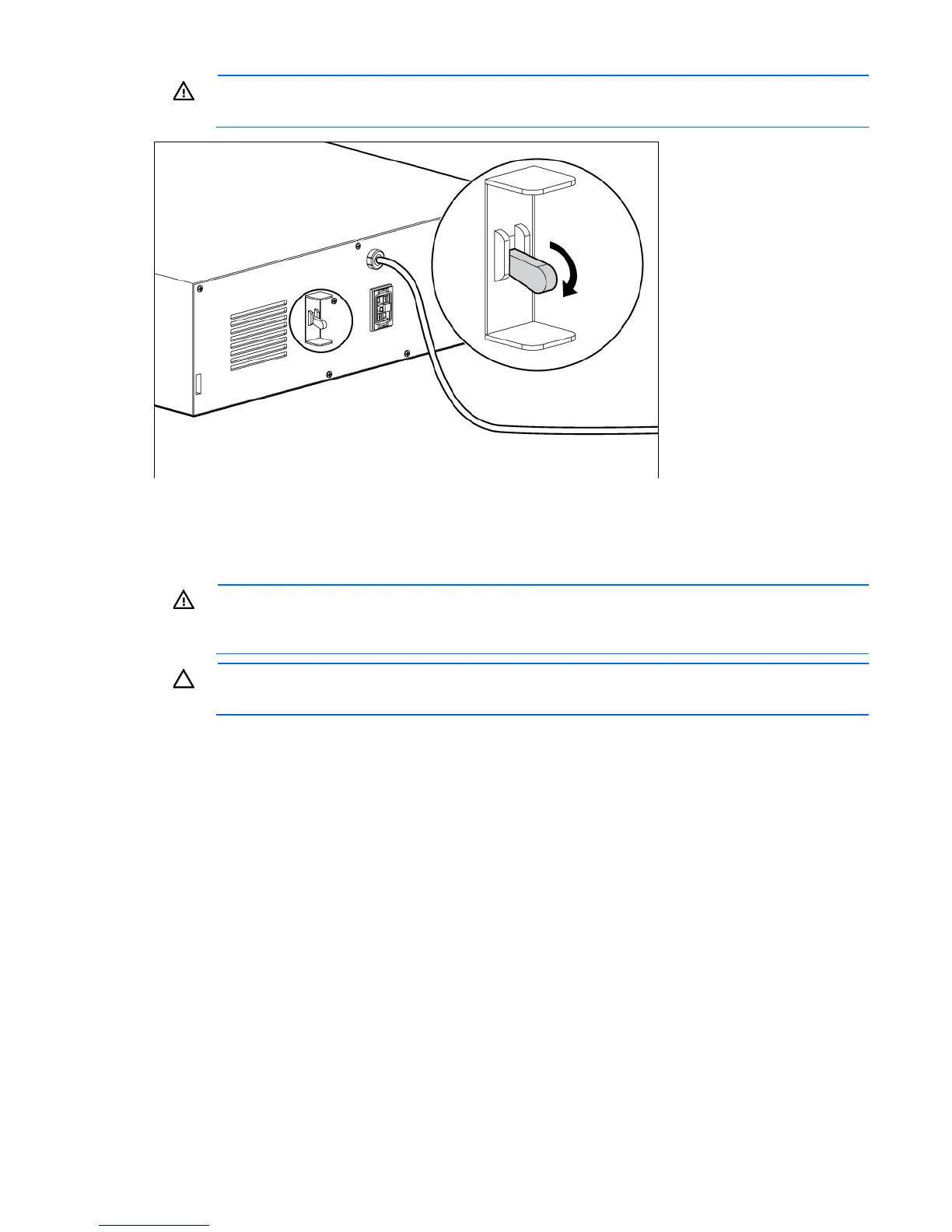

WARNING: To prevent personal injury from electric shock or damage to the equipment, verify
that the circuit breaker is in the Off position.
Installing the ERM
Before installing the ERM, review and observe all warnings in "Precautions (on page 13)."
WARNING: A risk of personal injury or damage to the equipment exists. Uneven loading of
equipment in the rack might cause the rack to become unstable. Install the heavier components
first, and then continue to populate the rack from the bottom to the top.
CAUTION: Always plan the rack installation so that the heaviest item is on the bottom of the rack.
Install the heaviest item first, and continue to populate the rack from the bottom to the top.
1. Install the mounting rails ("Installing the mounting rails" on page 56, "Installing the mounting rails" on
page 14).
2. With one person on each side of the carton, lift the chassis and lower it to the floor in front of the rack.
