UPS installation 22
NOTE: The REPO wiring of a standalone UPS can be connected with the REPO wiring of a
parallel system if the same sense (NO or NC) contacts are used. Be sure to match the polarity for
the contacts.
1. Verify that the UPS is powered down and all power sources are removed. For more information, see
"Powering down the standalone UPS (on page 72)."
2. Mount the remote REPO switch. HP recommends mounting the REPO switch near the operator's
consoles or near the exit doors. For enclosure dimensions and wiring knockouts, see the REPO switch
manufacturer's installation instructions.

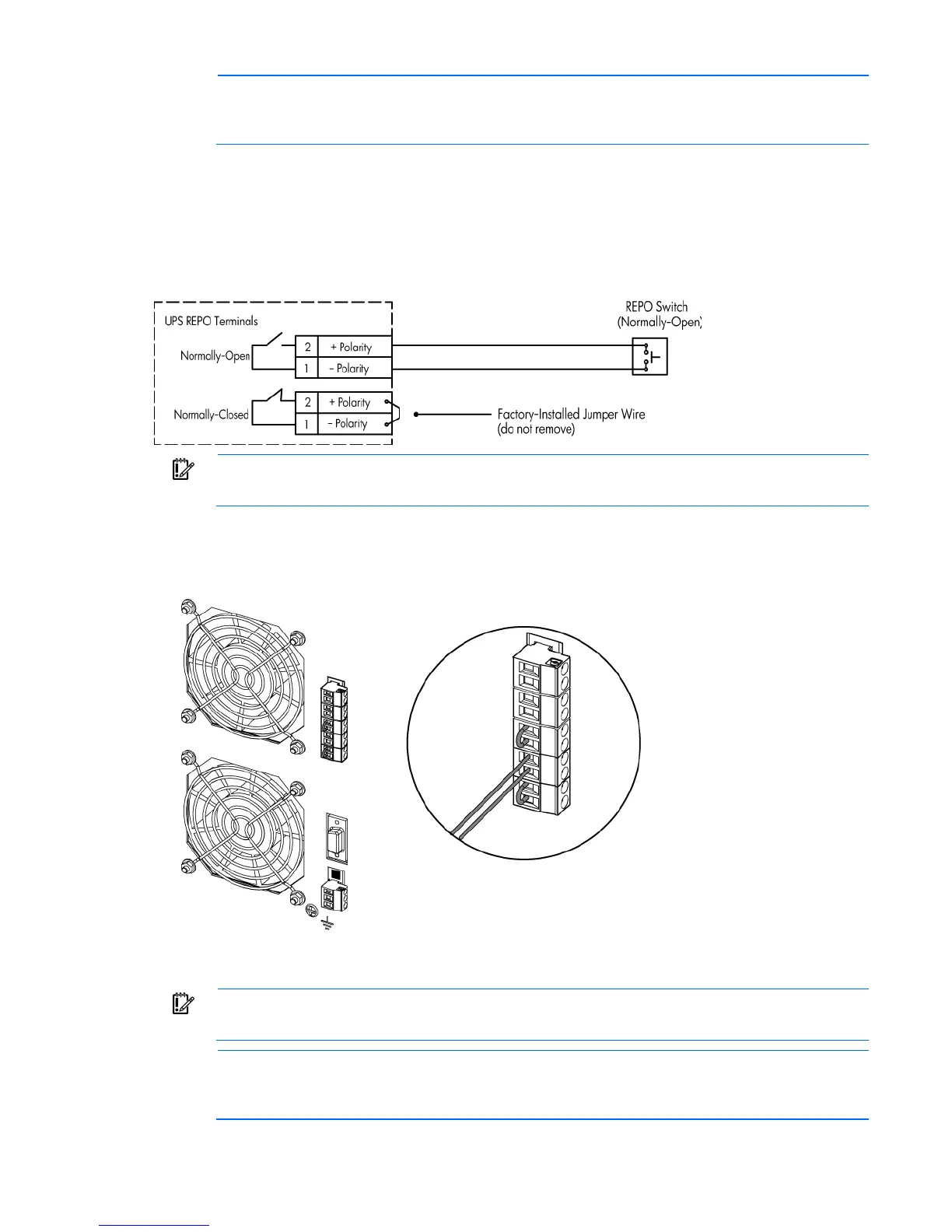

3. Connect the appropriate external switch to terminal block 4, normally-open REPO.
IMPORTANT: Always test the REPO function before applying the critical load to avoid accidental
load loss. For more information, see "Verifying the REPO port connection (on page 71)."
4. Reconnect terminal block 4, normally-open REPO, and then power on the UPS manually to restart. Pins
should remain open to keep the UPS running. Maximum resistance is 10 ohm.
5. Verify that the jumper is inserted in terminal block 5.
Connecting to a normally-closed contact
IMPORTANT: The remote switch must be in the closed position to enable power to the UPS
output.
NOTE: The REPO wiring of a standalone UPS can be connected with the REPO wiring of a
parallel system if the same sense (NO or NC) contacts are used. Be sure to match the polarity for
the contacts.
