HP R1500 - UPS XR User Manual

UPS installation 34
3.

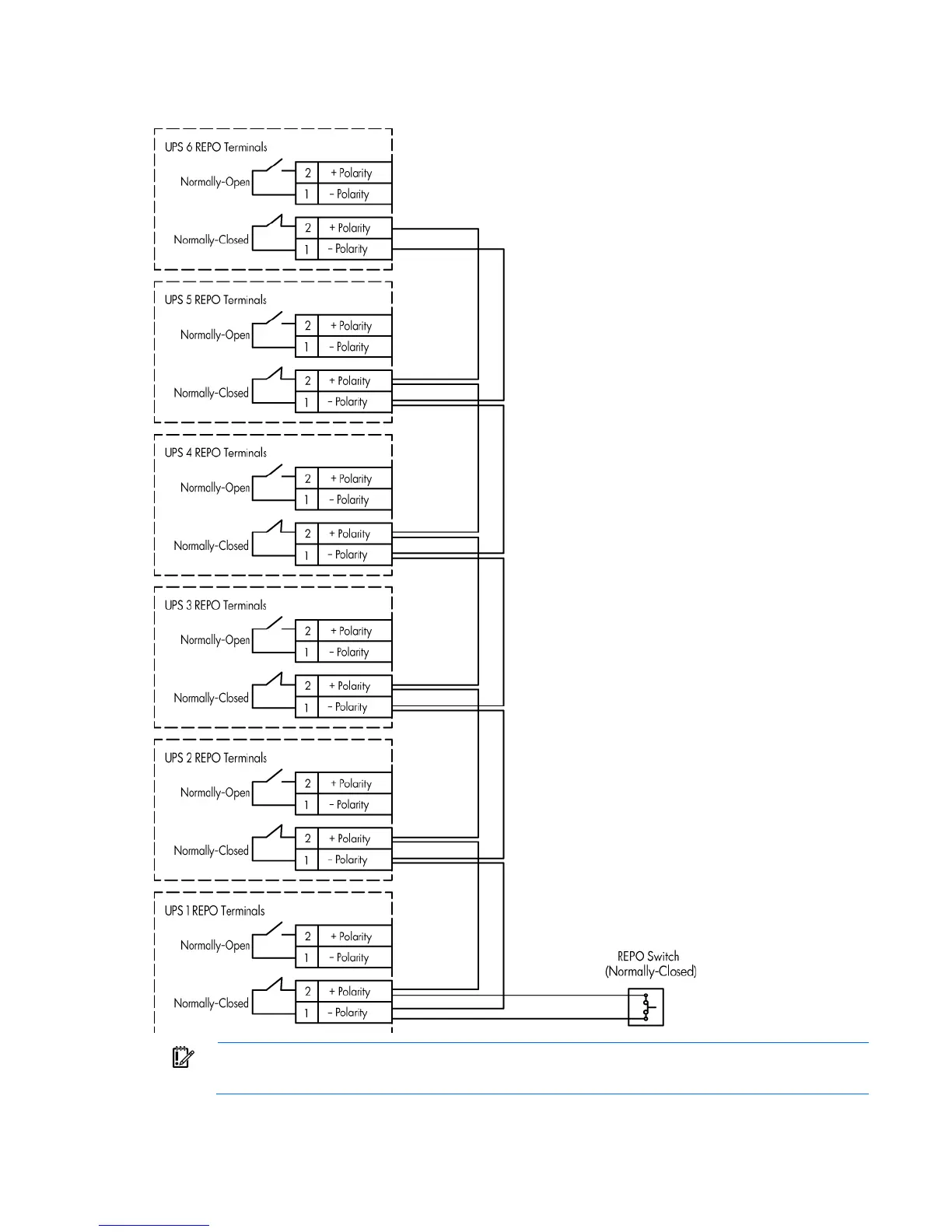

Connect the appropriate external switch to terminal block 5, normally-closed REPO. Connect Pin 1 to
Pin 1 and connect Pin 2 to Pin 2 of each UPS, and then discard the jumper from terminal block 5.
IMPORTANT: Always test the REPO function before applying the critical load to avoid accidental
load loss. For more information, see "Verifying the REPO port connection (on page 71)."

HP R1500 - UPS XR Specifications

General

Topology	Line Interactive
Input Connection	IEC 320 C14
Battery Type	Sealed Lead Acid (SLA)
Form Factor	Rackmount
Nominal Output Voltage	230V
Nominal Input Voltage	230V
Input Frequency	50/60 Hz
Typical Backup Time at Full Load	5 minutes
Transfer Time	4-8 ms
Hold-up Time	10 ms
Input Voltage Range	160 - 286 VAC
Interface Port	USB
Battery Recharge Time	3 hours
Communication Ports	USB
Waveform	Sine wave
