82 REMOVAL AND REPLACEMENT PROCEDURES
To install the card support:
1 Disconnect power from the system (page 66), remove the access panel (page 71), and lay the
workstation on its side with the system board facing up.

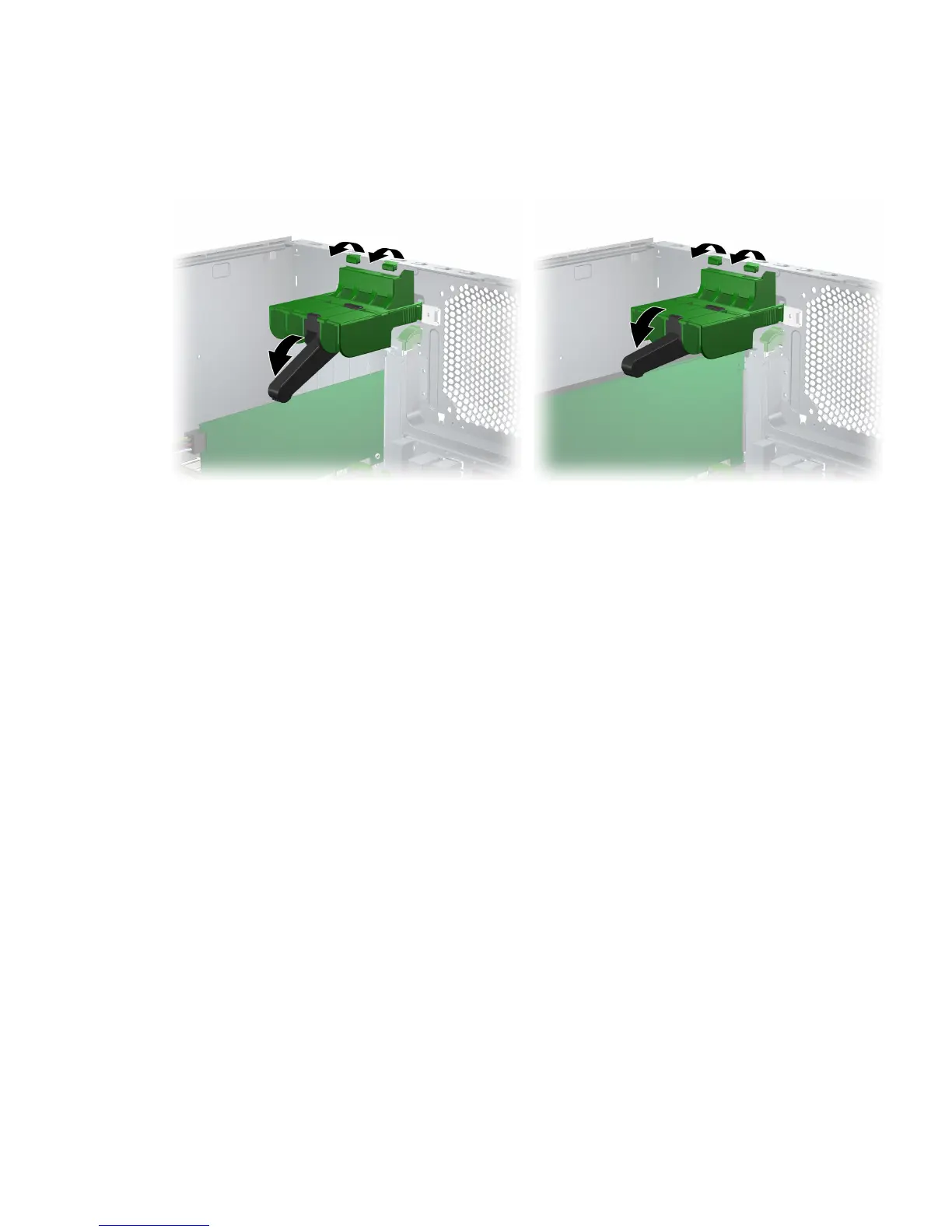

2 For short or tall PCI cards, attach the lips of the support arm 1 under the slots on the rear of the
chassis, then rotate the card support down until the black part of the arm 2 supports the card.
2
2
1
1
