REMOVAL AND REPLACEMENT OF COMPONENTS 93
Chapter 4

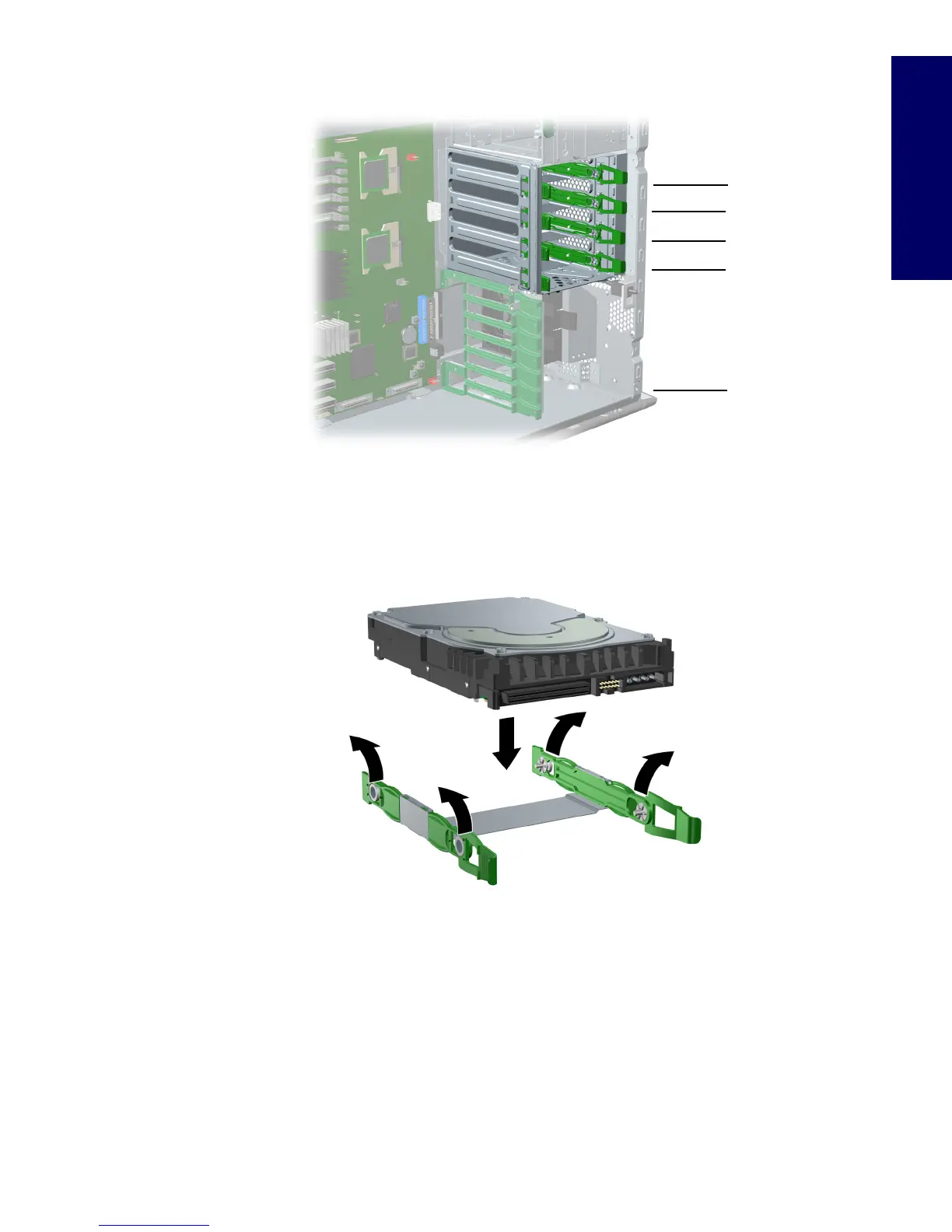

1 Select a drive bay in which to install the drive. If installing more than one hard drive, use the hard
drive order in the following image.
2 Simultaneously disengage the green tabs of the rail assembly and slide the rails out of the empty bay.
3 Attach the rails to the hard drive by first inserting the hard drive rail assembly pins into one side of the
hard drive screw holes. Next, gently flex open the opposite side of the hard drive rail assembly and
insert the remaining pins into the holes in the hard drive. If installing the hard drive into bay 5, skip
this step.
3
2
1
4
5
