94 REMOVAL AND REPLACEMENT PROCEDURES

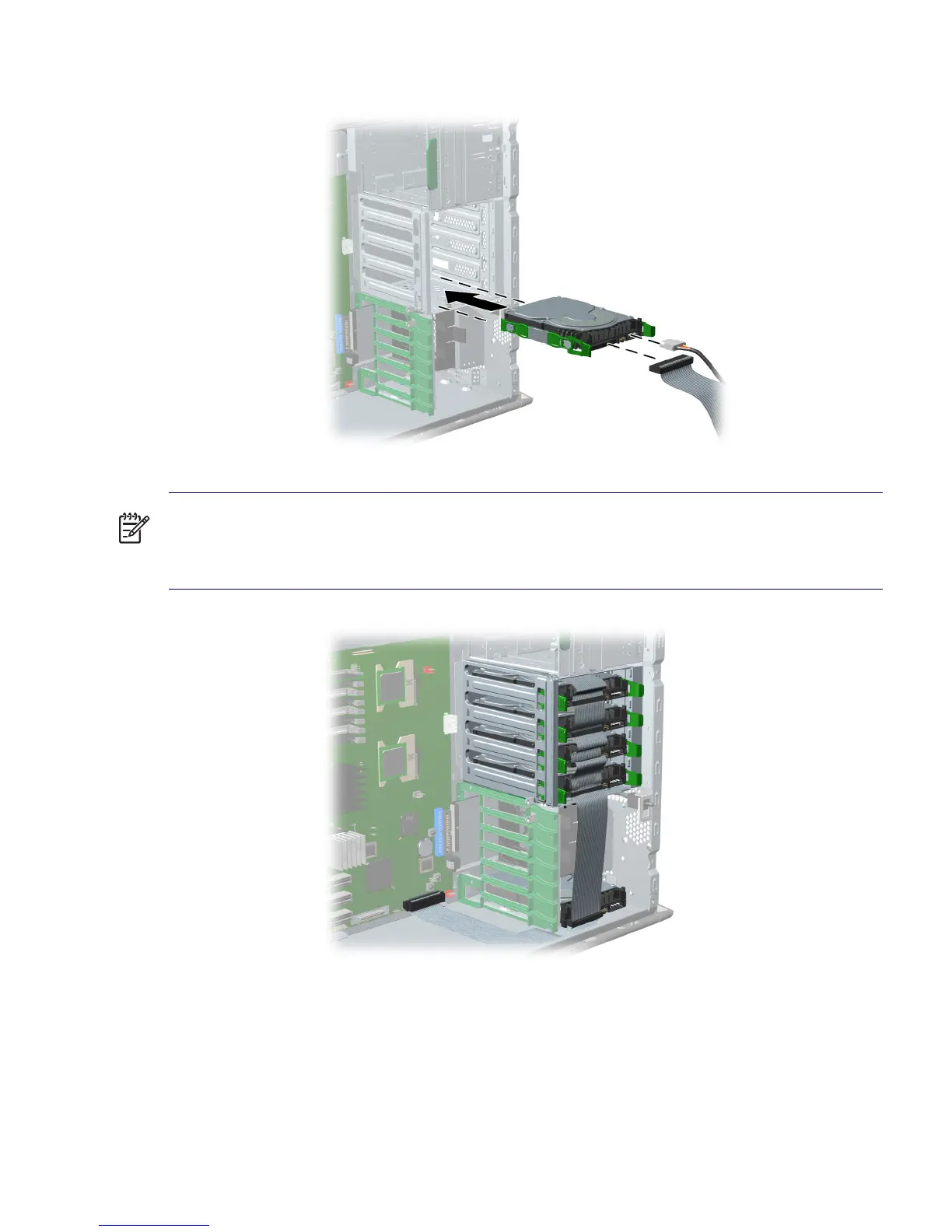

4 Push the drive into the selected bay until it snaps into place. Then attach the power and SCSI cable
to the drive.
NOTE If installing a hard drive into bay 5, lay the workstation on its side and remove the three drive
screws that are located near bay 5. Insert the drive into bay 5 and align the holes in the bottom of the
hard drive with the screw holes at the base of the chassis. Insert the screws through the base and
tighten the hard drive to the chassis.
5 Connect the data cable to the SCSI1 connector on the system board (see the previous illustration).
