6. Disconnect the front panel I/O device assembly cables from the system board as shown below.

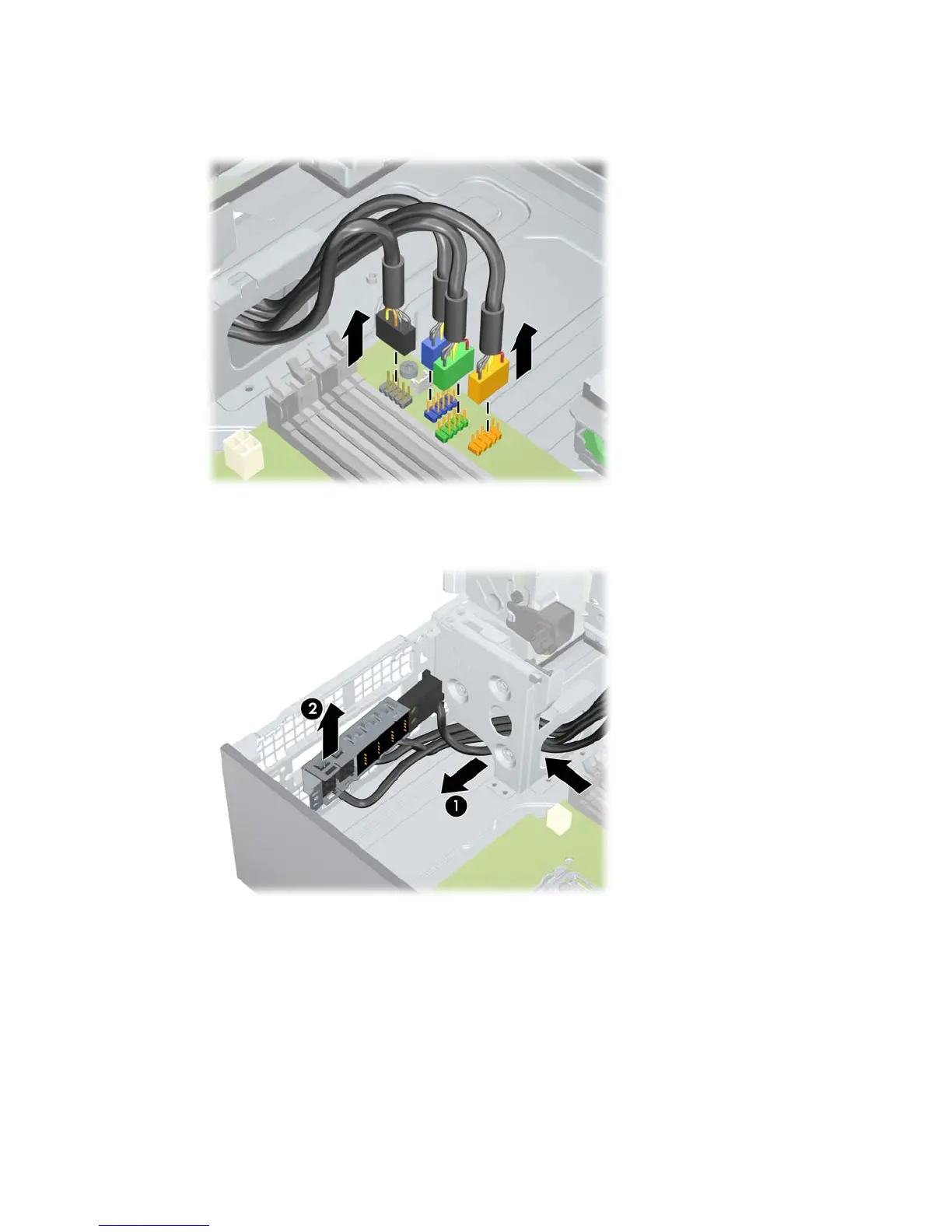

Figure 5-34 Disconnecting the front panel I/O cables
7. Carefully guide the cables through the chassis openings (1), as shown in the following figure.
Figure 5-35 Removing the front panel I/O device assembly
8. Carefully lift the front panel I/O device assembly and cables from the chassis (2).
ENWW Removing and installing components 97
