Speaker
This section describes how to remove and install the speaker.
Removing the speaker
To remove the speaker:
1. Prepare the computer for servicing by following the
Predisassembly procedures on page 68.
CAUTION: Failure to follow the predisassembly procedures can result in equipment damage or
data loss.
2. Remove the access panel (see Removing the access panel on page 71).
3. Remove the front bezel (see
Removing the front bezel on page 72).
4. Disconnect the speaker cable from the system board (1) as shown in the figure below.
5. Remove the two screws as shown (2).
6. Slide the speaker away from the chassis and remove it from the chassis (3).

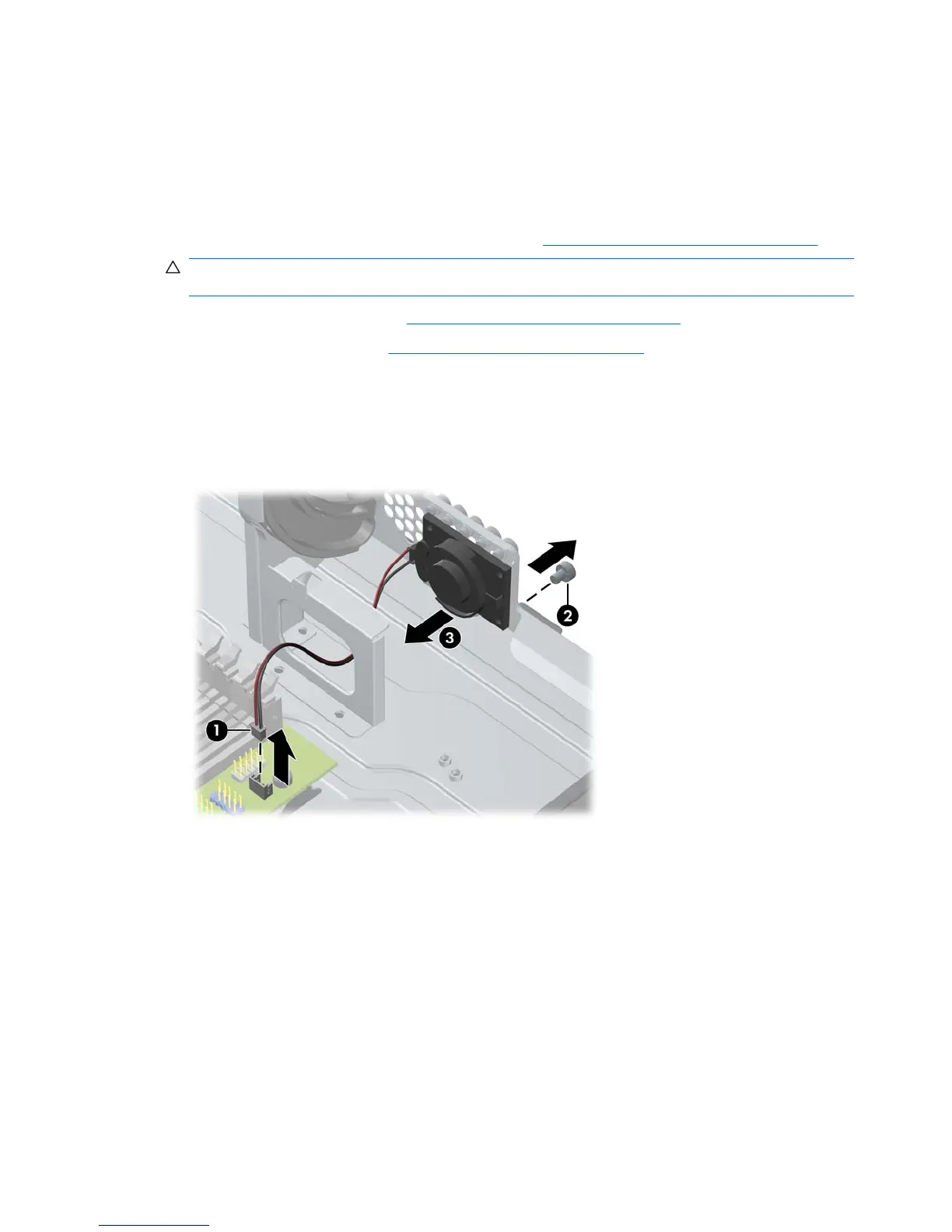

Figure 5-38 Removing the computer speaker
Installing the speaker
To install the speaker, reverse the previous steps.
100 Chapter 5 Replacing components ENWW
