HP Z200 - Small Form Factor Workstation Maintenance And Service Guide

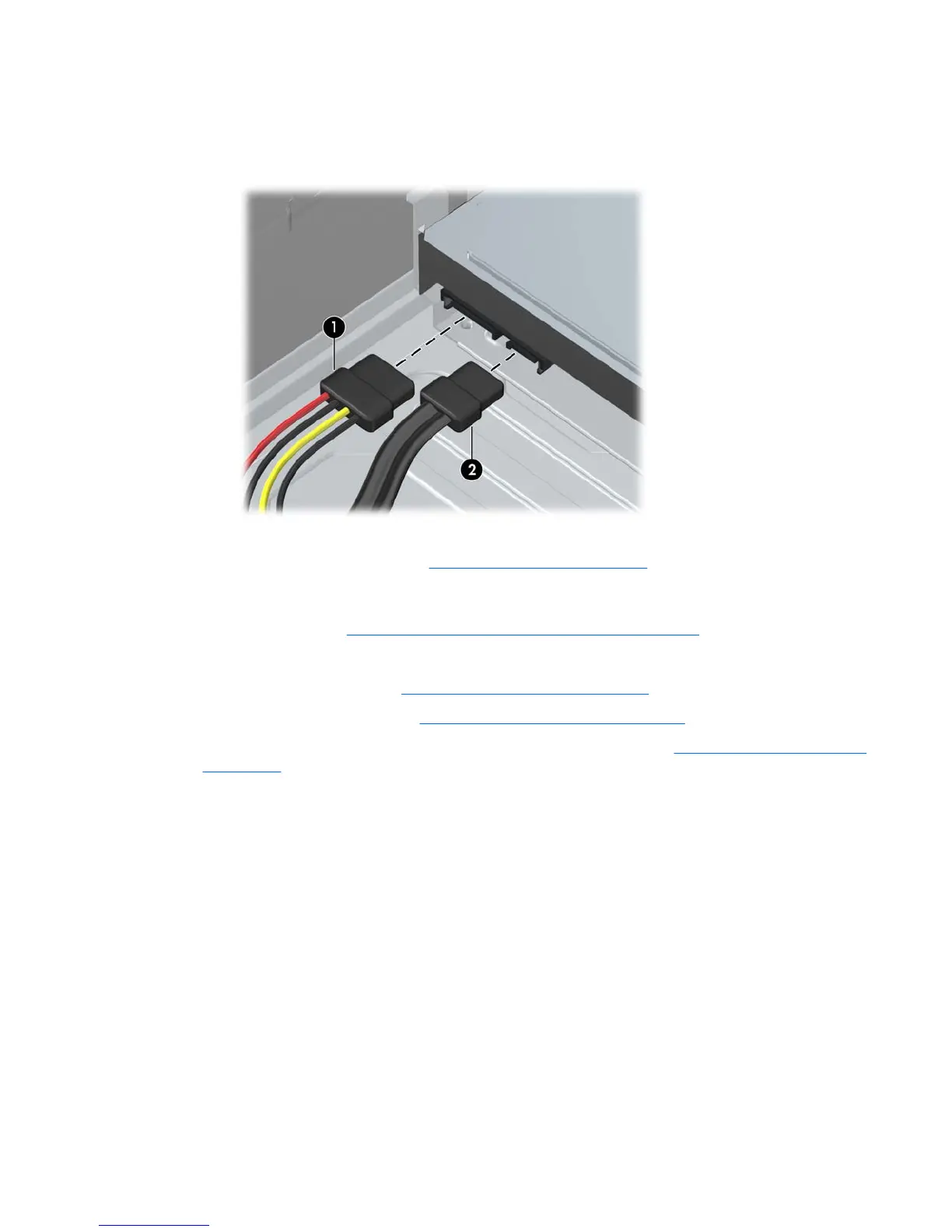

10. Connect the drive cables:
a. Connect the power cable (1) and data cable (2) to the hard drive.
Figure 5-30 Removing the optical drive
b. Route the SATA and power cables through the cable guide on the bottom of the chassis frame
behind the hard drive. (See
Cable management on page 93.)
c. If the system has only one SATA hard drive, the data cable must be connected to the dark
blue connector labeled SATA0 on the system board to avoid any hard drive performance
problems. (See
Locate system board drive connections on page 78.)
11. Rotate the drive cage and the power supply down to their normal positions.
12. Replace the front bezel (see
Installing the front bezel on page 72).
13. Replace the access panel (see
Installing the access panel on page 71).
14. Restore all connections and equipment that you removed during the
Predisassembly procedures
on page 68.
Cable management
The Z200 Small Form Factor chassis is a very compact computer and proper routing of the internal
cables is critical to the operation of the computer. Follow good cable management practices when
working inside the computer
●
Keep cables away from direct contact with major heat sources like the heat sink. (The air flow guide
has a cable guide that lets you route cables safely around the heatsink.)
●
Do not jam cables on top of expansion cards or DIMMs. Circuit cards and DIMMs are not designed
to take excessive pressure.
●
Keep cables clear of movable or rotating parts like the power supply and drive cage to prevent
them from being cut or crimped when the component is lowered into its normal position
●
When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
wires.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
ENWW Removing and installing components 93
