9. Align the guide screws with the slots on the chassis drive cage, press the hard drive down into the
bay, then slide it back until it stops and locks in place.

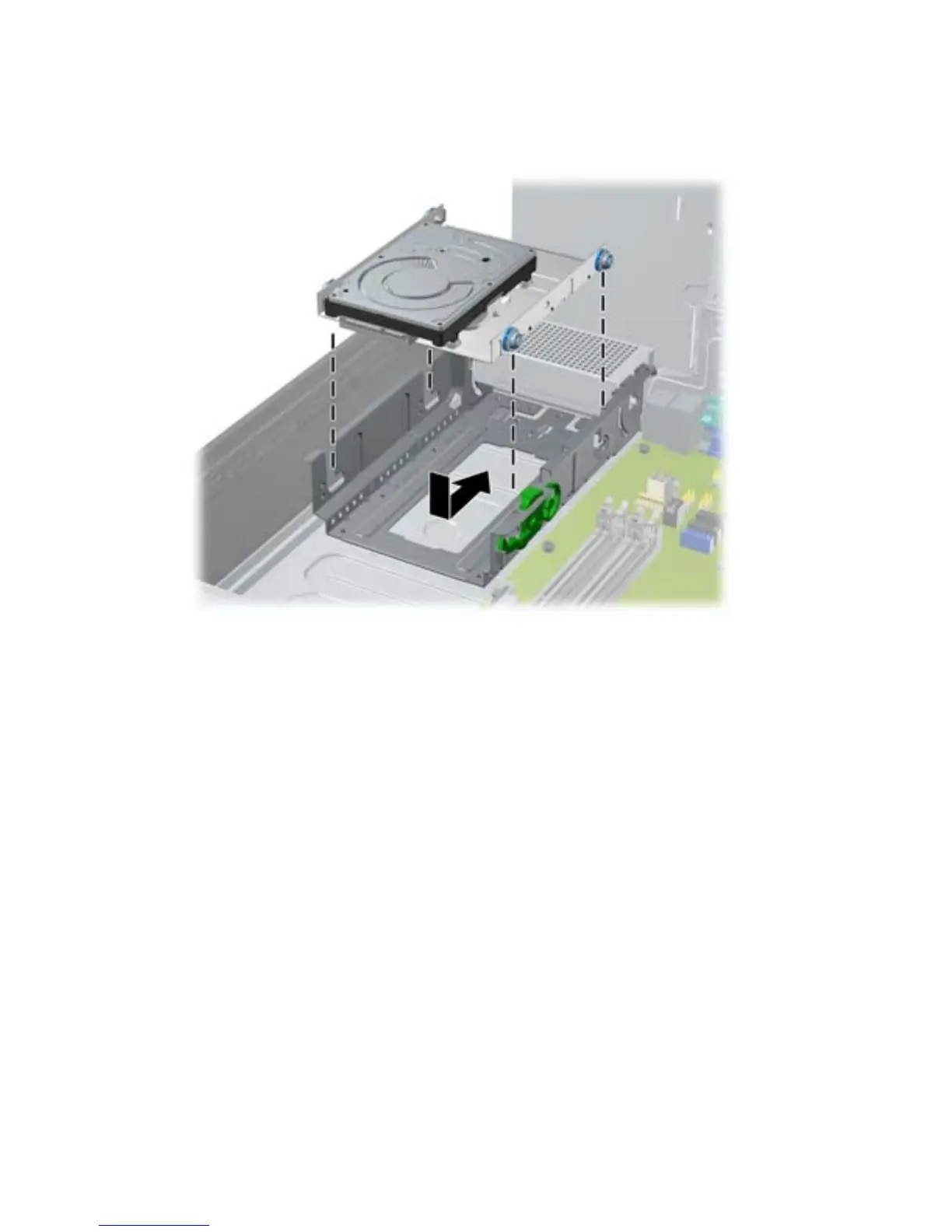

Figure 5-29 Installing the hard drive (drive carrier shown)
92 Chapter 5 Replacing components ENWW
