Rear panel components
The following figure shows the layout of a typical rear panel.

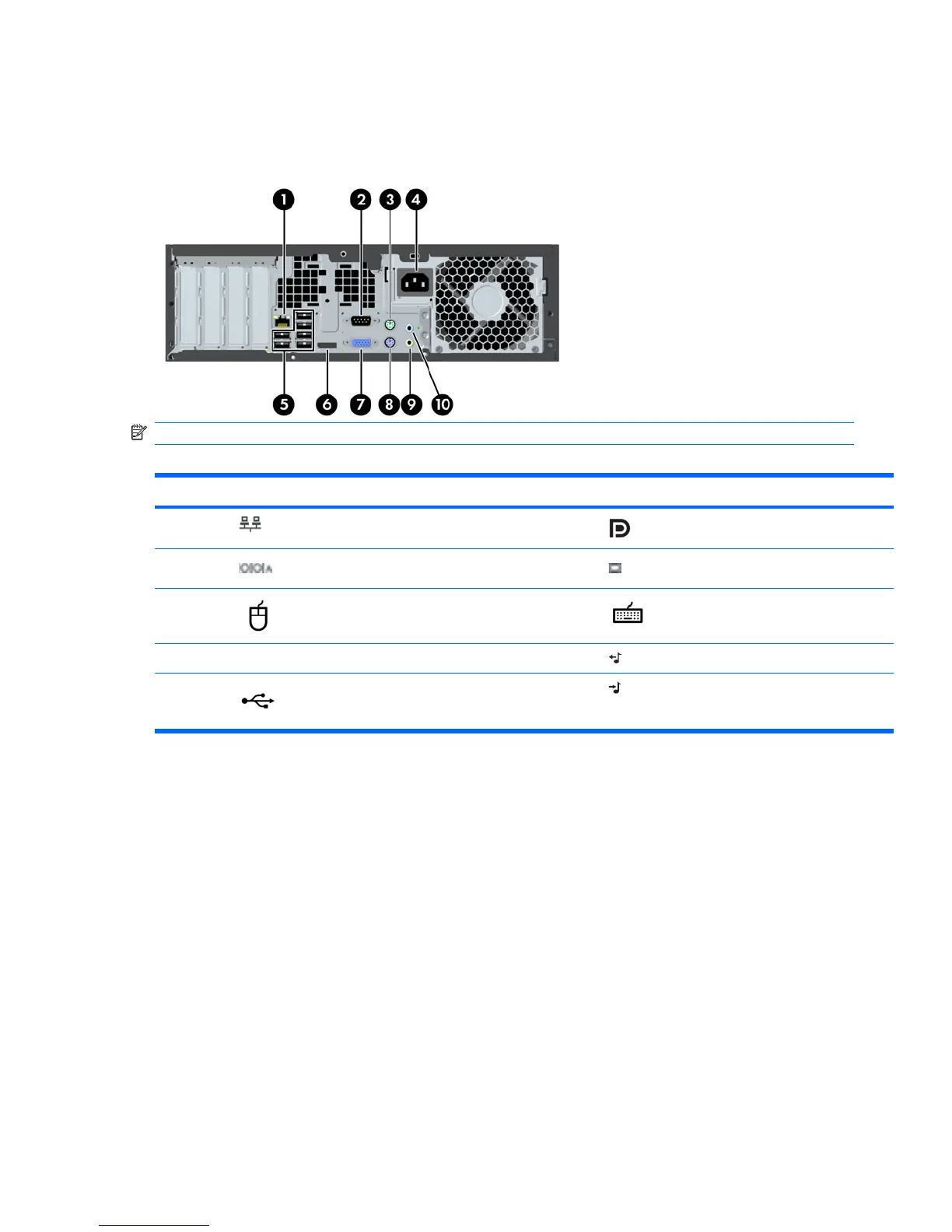

Figure 1-4 Rear panel
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
Table 1-3 Rear panel connectors
Item Symbol Description Item Symbol Description
1 RJ–45 network connector 6
Display port (DP)
1
2 Serial port 7
VGA (monitor)
1
3 PS/2 mouse connector (green) 8 PS/2 keyboard connector (purple)
4 Power cord connector 9 Audio line-out connector (green)
5 USB 2.0 ports (6) 10 Audio line-in connector (blue)
1. The DP and VGA ports are disabled if used with Intel® Xeon quad–core processors.
6 Chapter 1 Product overview ENWW
