HP Z200 - Small Form Factor Workstation Maintenance And Service Guide

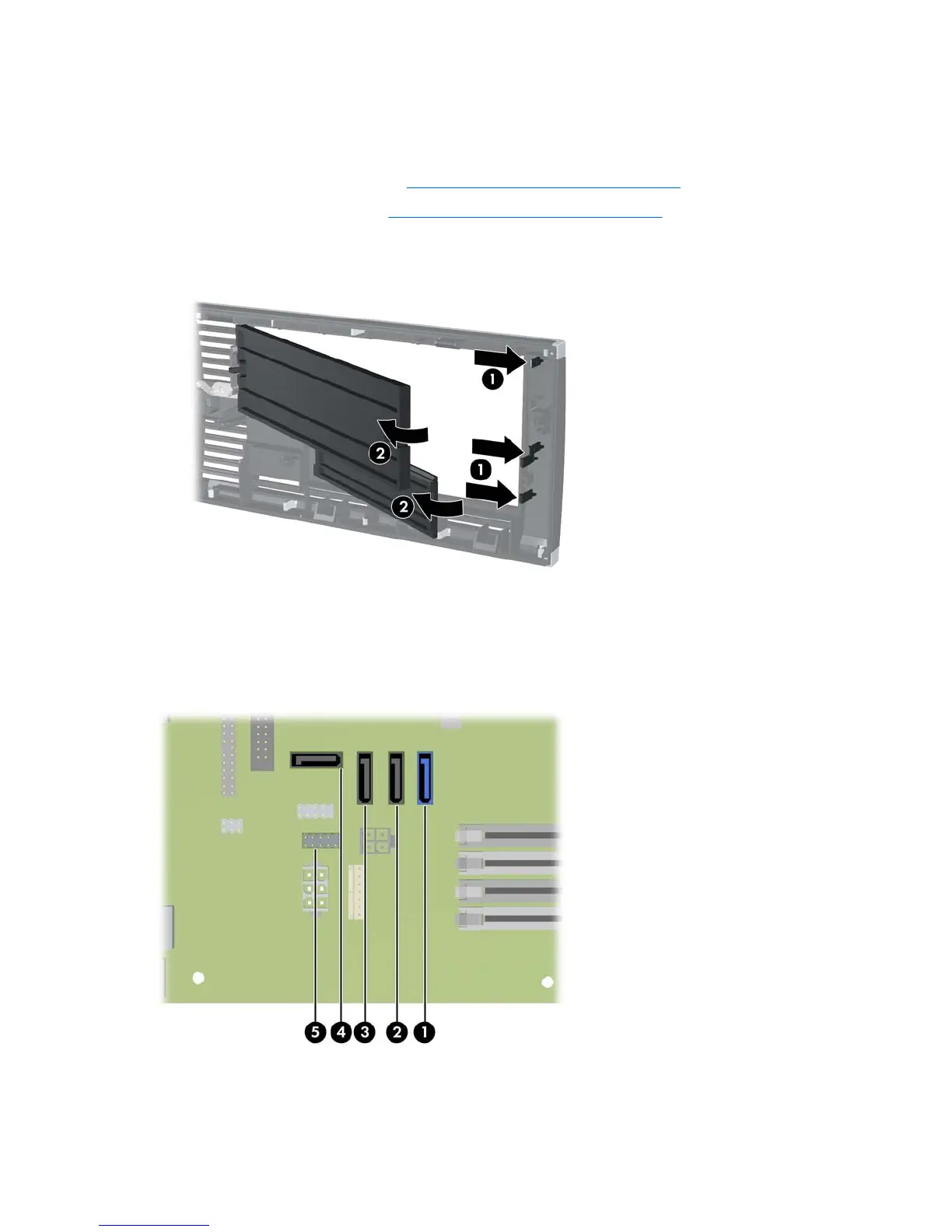

Remove bezel blanks
On some models, you may need to remove the bezel blanks that cover the 3.5-inch and 5.25-inch drive
bays before you install a drive. To remove a bezel blank:
1. Remove the access panel (see
Removing the access panel on page 71).
2. Remove the front bezel (see
Removing the access panel on page 71).
3. On the inside of the bezel, push the two retaining tabs that hold the bezel blank in place towards
the outer right edge of the bezel (1) and then slide the bezel blank back and to the left to remove
it (2).
Locate system board drive connections
Adding a new drive may require that you make new connections from the drive to the system board.
Refer to the following illustration and table to identify the system board drive connectors.
Figure 5-9 System board drive connections
78 Chapter 5 Replacing components ENWW
