Removing a DIMM
To remove a DIMM:
1. Prepare the computer for servicing by following the
Predisassembly procedures on page 68.
CAUTION: Failure to follow the predisassembly procedures can result in equipment damage or
data loss.
2. Remove the access panel (see Removing the access panel on page 71).
3. Rotate the drive cage to its upright position.

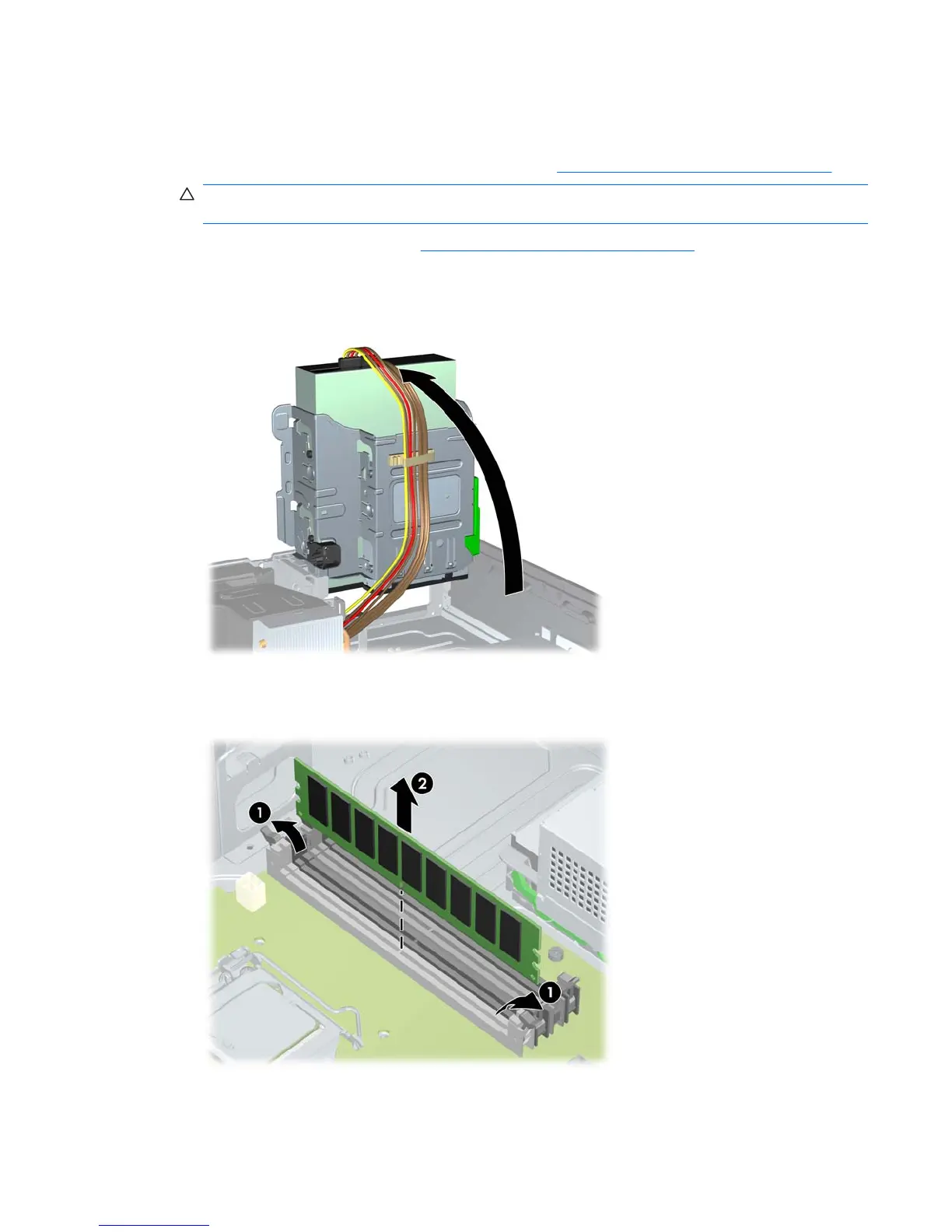

Figure 5-45 Rotating the drive cage up
4. Push gently outward on the DIMM socket levers (1) as shown in the following figure.
Figure 5-46 Removing a DIMM
5. Lift the DIMM straight up (2) and out of the socket, then store the DIMM in an antistatic bag.
