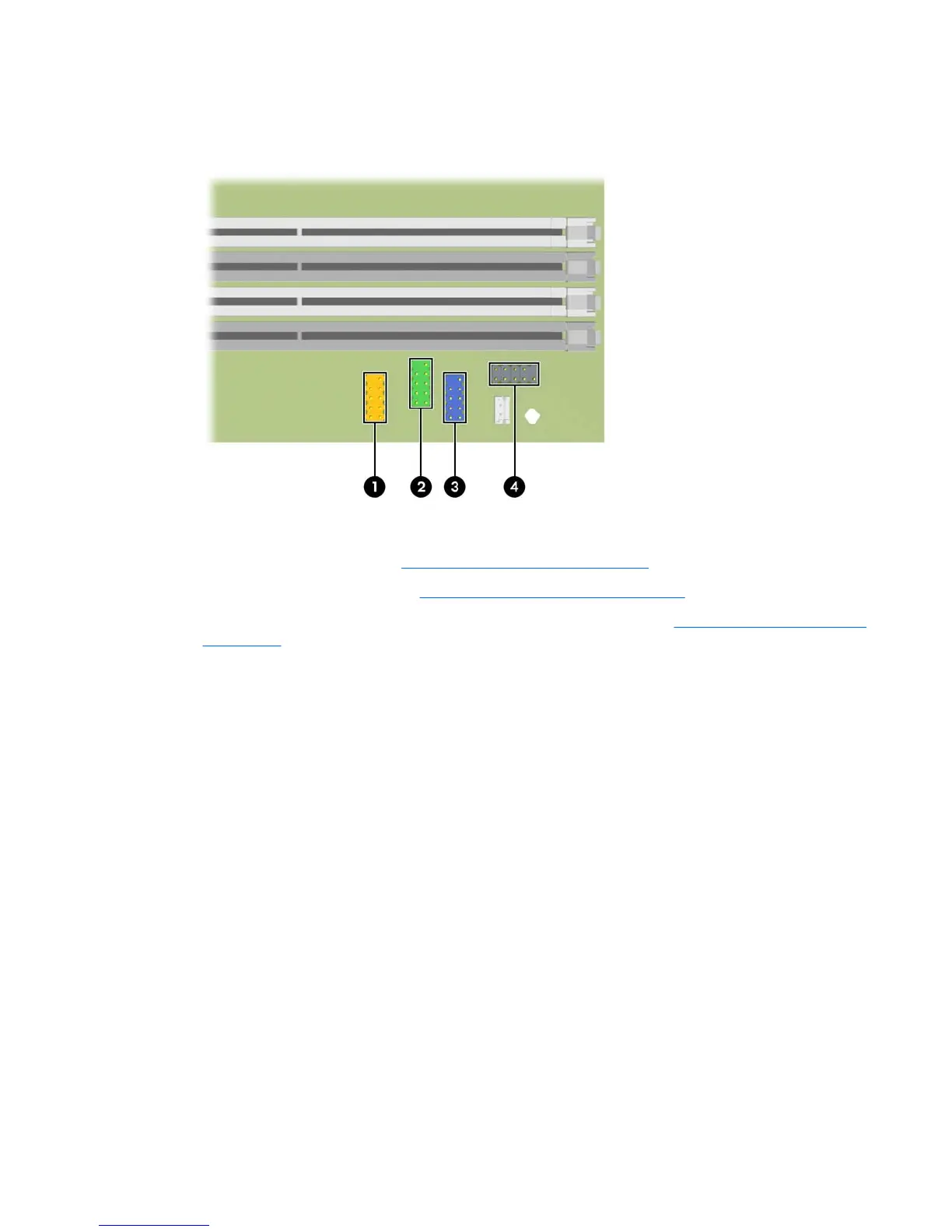

7. Connect the front panel USB (1 and 2), front audio (3), and front power/LED (4) cables to the system
board as shown in the following diagram.
Figure 5-37 Connecting the front panel I/O device cables
8. Rotate the drive cage down to its normal position.
9. Replace the front bezel (see
Installing the front bezel on page 72).
10. Replace the access panel (see
Installing the access panel on page 71).
11. Restore all connections and equipment that you removed during the
Predisassembly procedures
on page 68.
ENWW Removing and installing components 99
