5. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket (1).
CAUTION: DIMMs and their sockets are keyed for proper installation. To prevent socket or DIMM
damage, align these guides properly when installing DIMMs.

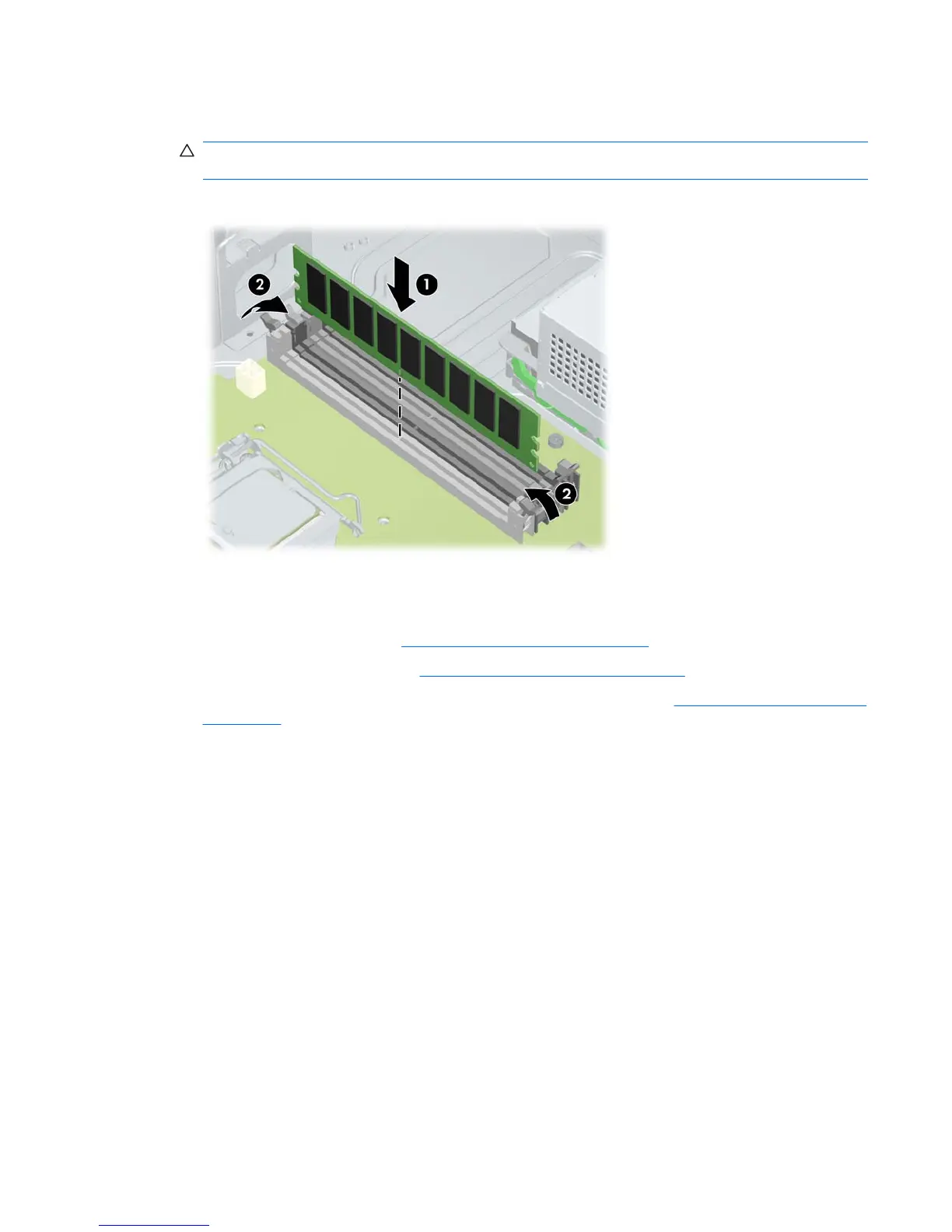

Figure 5-48 Opening DIMM socket levers
6. Secure the socket levers (2).
7. Rotate the drive cage and the power supply down to their normal positions.
8. Replace the front bezel (see
Installing the front bezel on page 72).
9. Replace the access panel (see
Installing the access panel on page 71).
10. Restore all connections and equipment that you removed during the
Predisassembly procedures
on page 68.
ENWW Removing and installing components 109
