5. Disconnect the drive cables from the rear of the drive, or, if you are removing a media card reader,
disconnect the USB and 1394 cables from the system board as indicated in the following
illustrations.

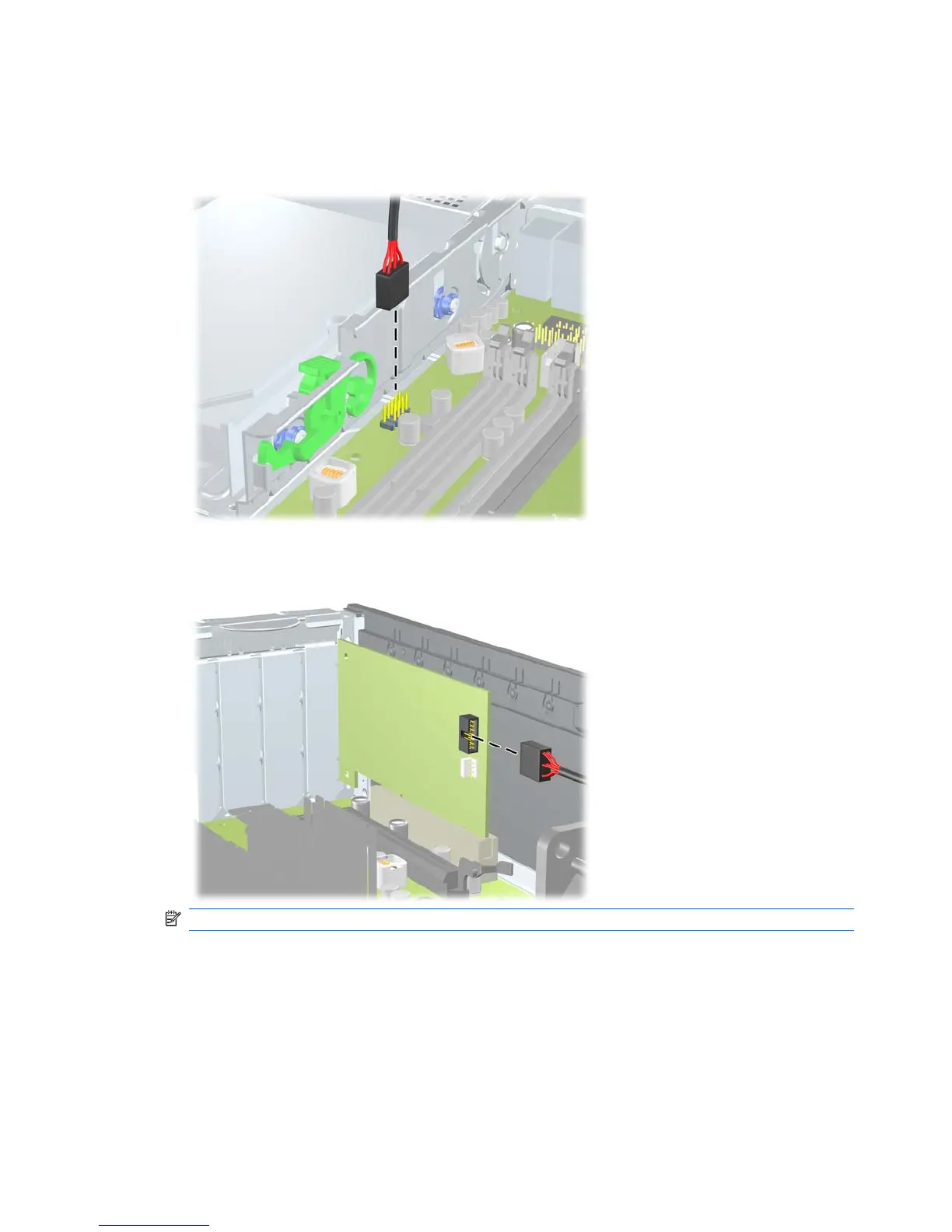

Figure 5-19 Disconnecting the 1394 cable
Figure 5-20 Disconnecting the Media Card Reader 1394 Cable
NOTE: On some models, the media card reader does not include a 1394 port or cable.
86 Chapter 5 Replacing components ENWW
