Display the InfiniBand Topology
View the Topology
1. Launch Element Manager, if you have not already done so.
2. Select InfiniBand --> Topology.

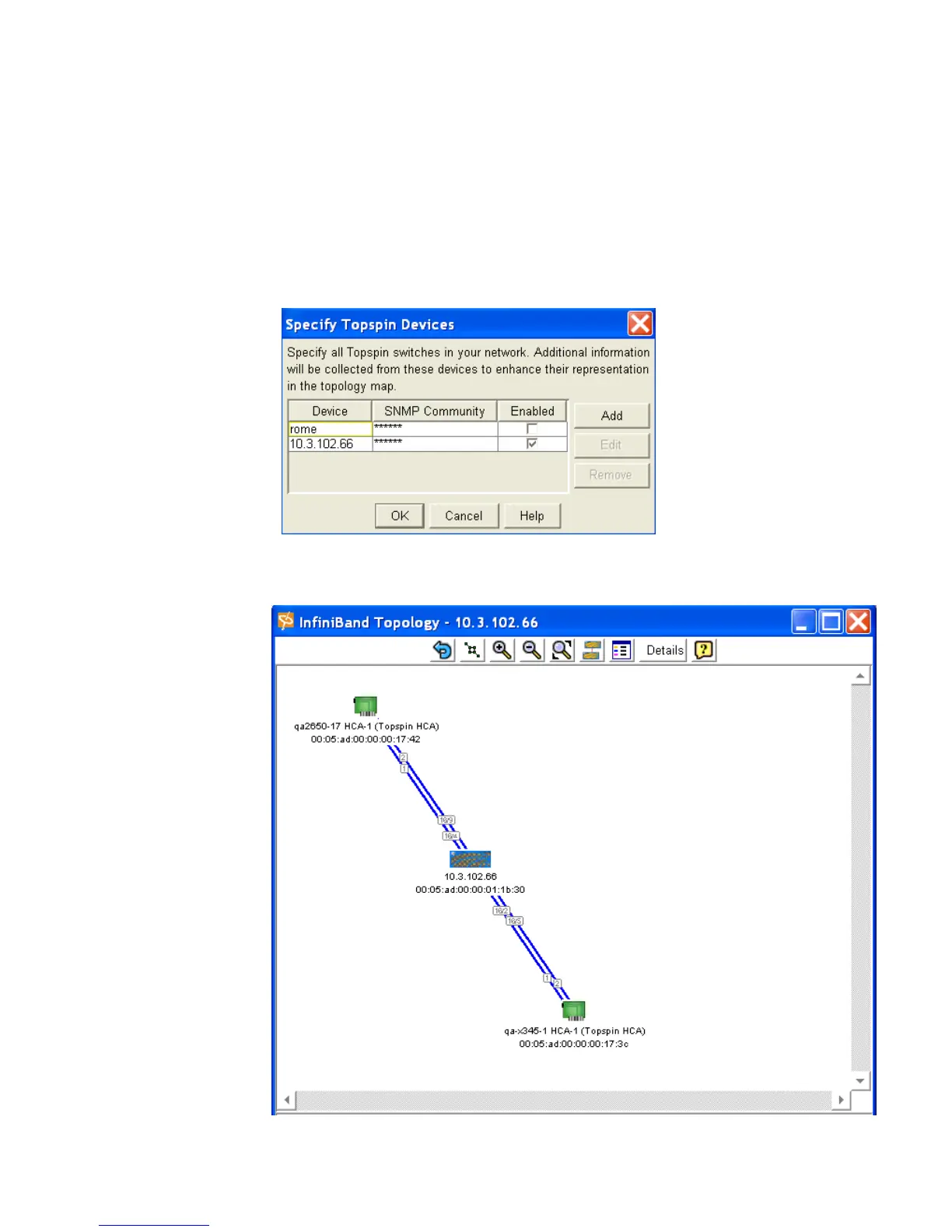

The Specify Devices dialog box opens, if this is your first time viewing the Topology.
To add a device, refer to “Add an Attached Device to the Topology View” on page 126.
3. Click the OK button.
The Topology view appears.
