View the GUID of an IB Switch

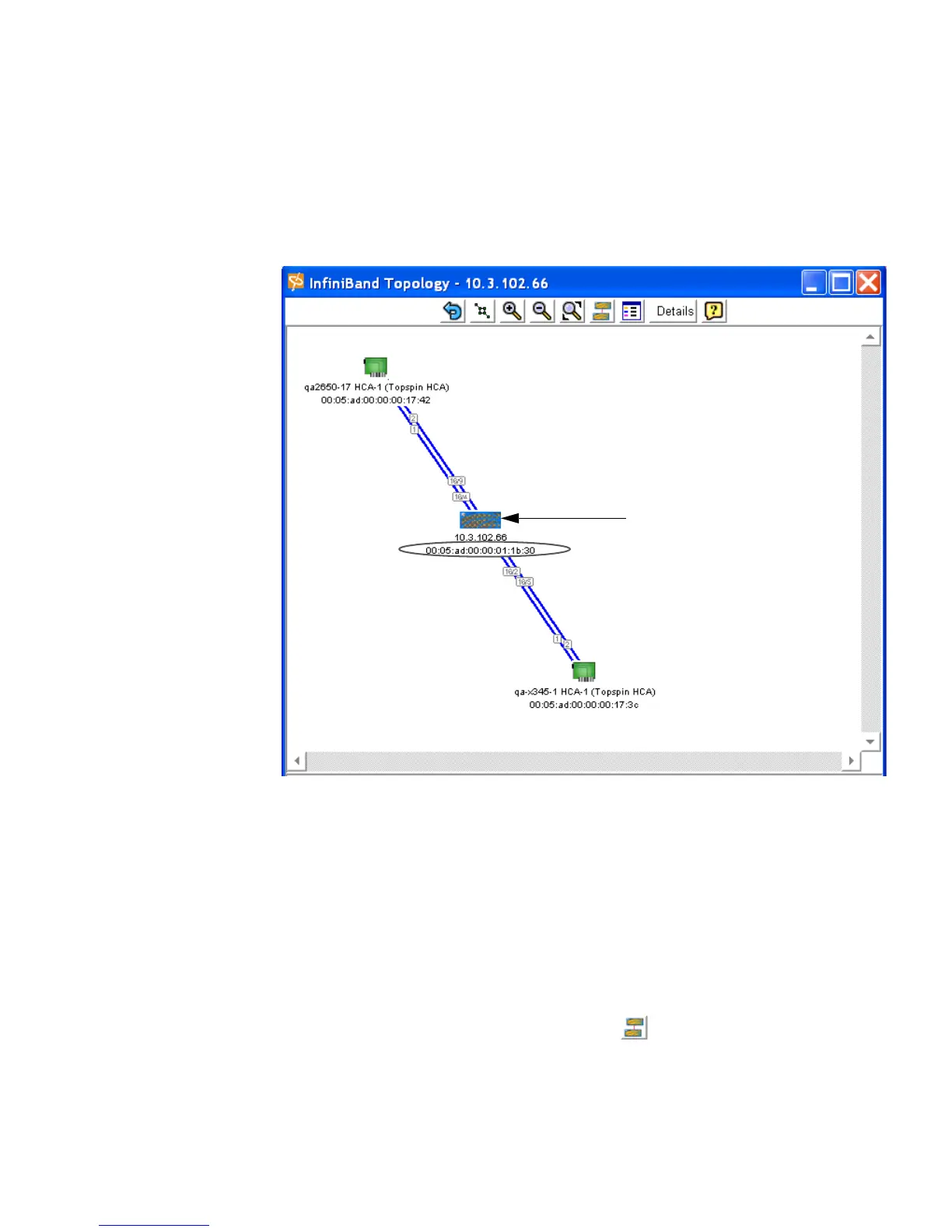

To easily associate an InfiniBand (IB) switch with the Global Unique Identifier (GUID), use the
Topology view.
1. Open the Topology view, if you have not already done so. Refer to “View the Topology” on
page 122.
2. View the switch GUID information that is displayed with the InfiniBand switch icon(s).
Add an Attached Device to the Topology View
When you first open the Topology view in a given session, the Element Manager opens a dialog box
that allows you to include any new devices in your Topology.
However, if you want to add a new device to the Topology after you have already opened the Topology
view, perform the following steps:
1. Select InfiniBand --> Topology.
The Topology view appears (unless this is a new session). If this is a new session, the Specify
Devices dialog box appears. Skip step 2.
2. Click the Specify Devices icon in the Topology view.
InfiniBand Switch Icon
