147
InfiniBand Multicast group is deleted
InfiniBand Partition is added
InfiniBand Partition is deleted
InfiniBand Multicast member is added
InfiniBand Multicast member is deleted
InfiniBand Node is added to a partition
InfiniBand Node is deleted from a partition
InfiniBand Node is added to subnet
InfiniBand Node is deleted from subnet
Configuring SNMP Settings
Viewing Current SNMP Trap Receivers
1. Launch Element Manager, if you have not already done so.
2. Select Health --> Trap Receivers.

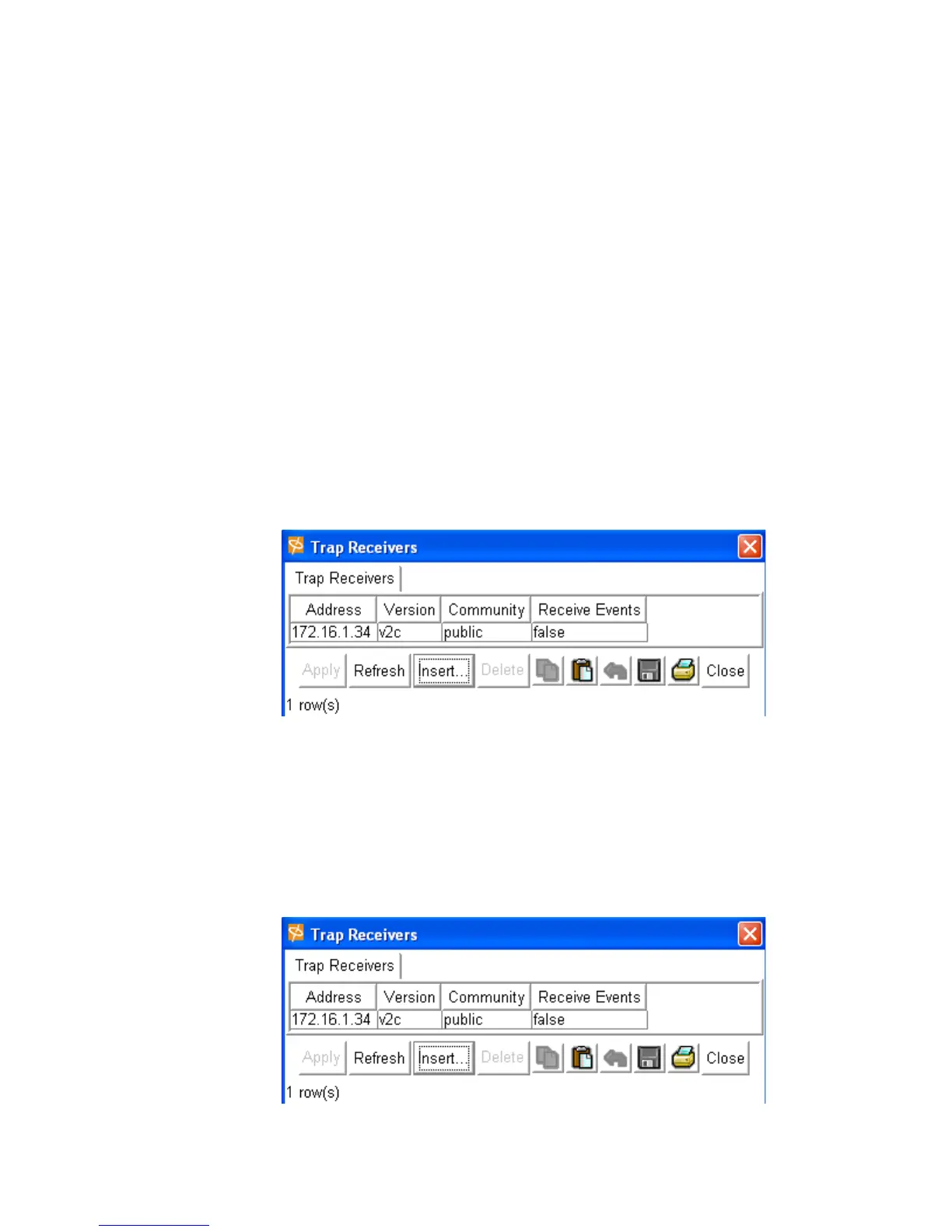

The Trap Receivers window appears.
Any previously configured Trap Receivers appear in the window.
If the Receive Events field is set to false (as in the example above), the Receiver is not set to
receive events.
Adding an SNMP Trap Receivers
1. Launch Element Manager, if you have not already done so.
2. Select Health --> Trap Receivers.
The Trap Receivers window appears.
3. Click the Insert button.
