HP zl User Manual

146
Print a Graph
Once you have created a data graph, you can print the graph for reference.
1. Create a data table.
Refer to “Create a Data Table” on page 140.

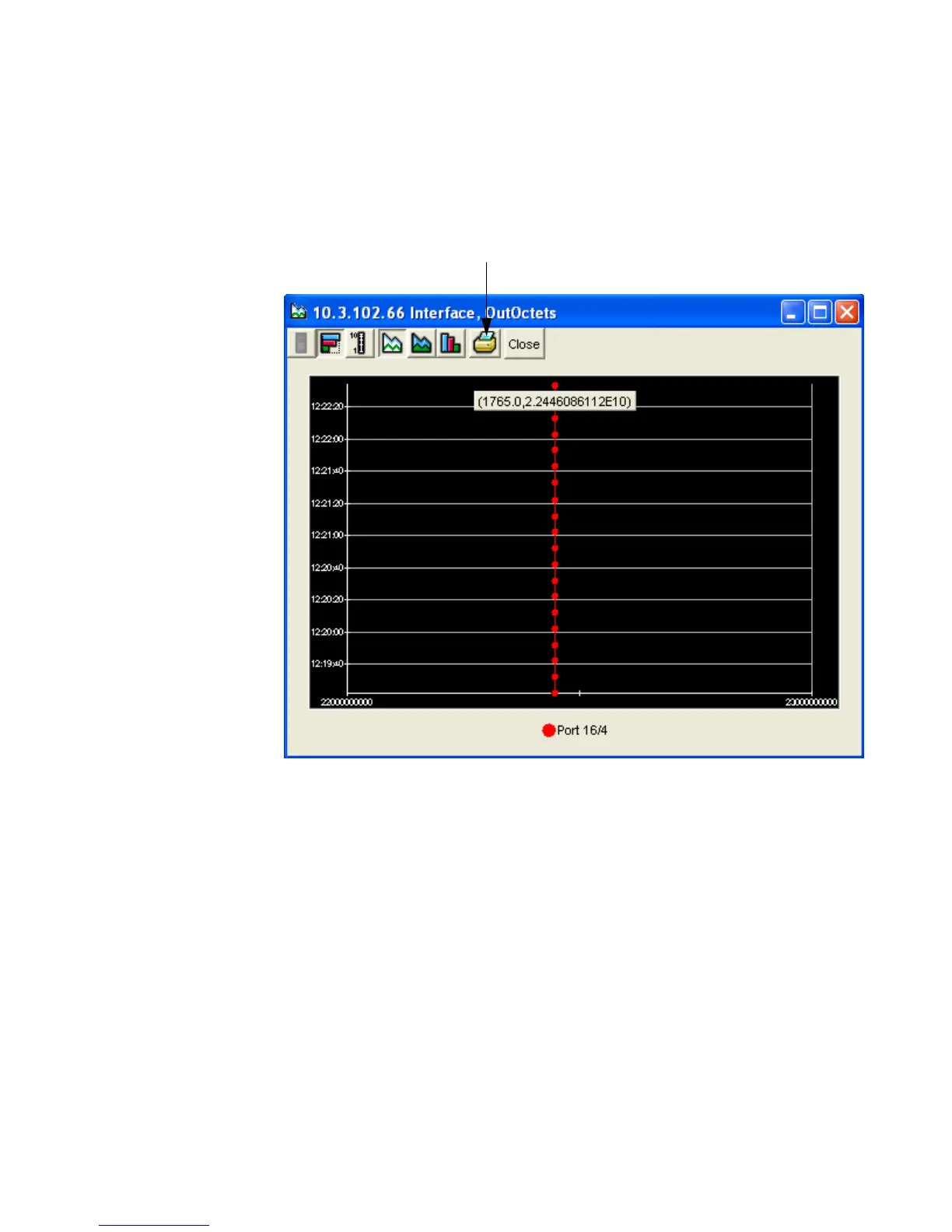

2. Click the print icon above the graph.
About SNMP Traps
Events Sent to Trap Receivers
Event messages are generated whenever a significant event occurs. Significant events sent to trap
receivers include:
• Configuration changes
• Card insertion/removal
• Card up/down
• Port up/down
• Fan up/down
• Temperature problems
• InfiniBand Subnet Manager slave becomes a master (this indicates a reboot)
• InfiniBand Subnet Manager master becomes a slave (this indicates a reboot)
• InfiniBand Multicast group is added

HP zl Specifications

General

Model	HP zl
Managed	Yes
Dimensions	Varies by model
Weight	Varies by model
Layer	Layer 3
Power Supply	Redundant power supplies supported
Management	CLI, Web, SNMP
PoE	Optional
Stacking	Yes
Jumbo Frames	Supported
VLANs	Supported
MAC Address Table	Up to 64, 000 entries
Operating Temperature	0°C to 45°C
Product Series	ProCurve/Aruba zl Series
