148

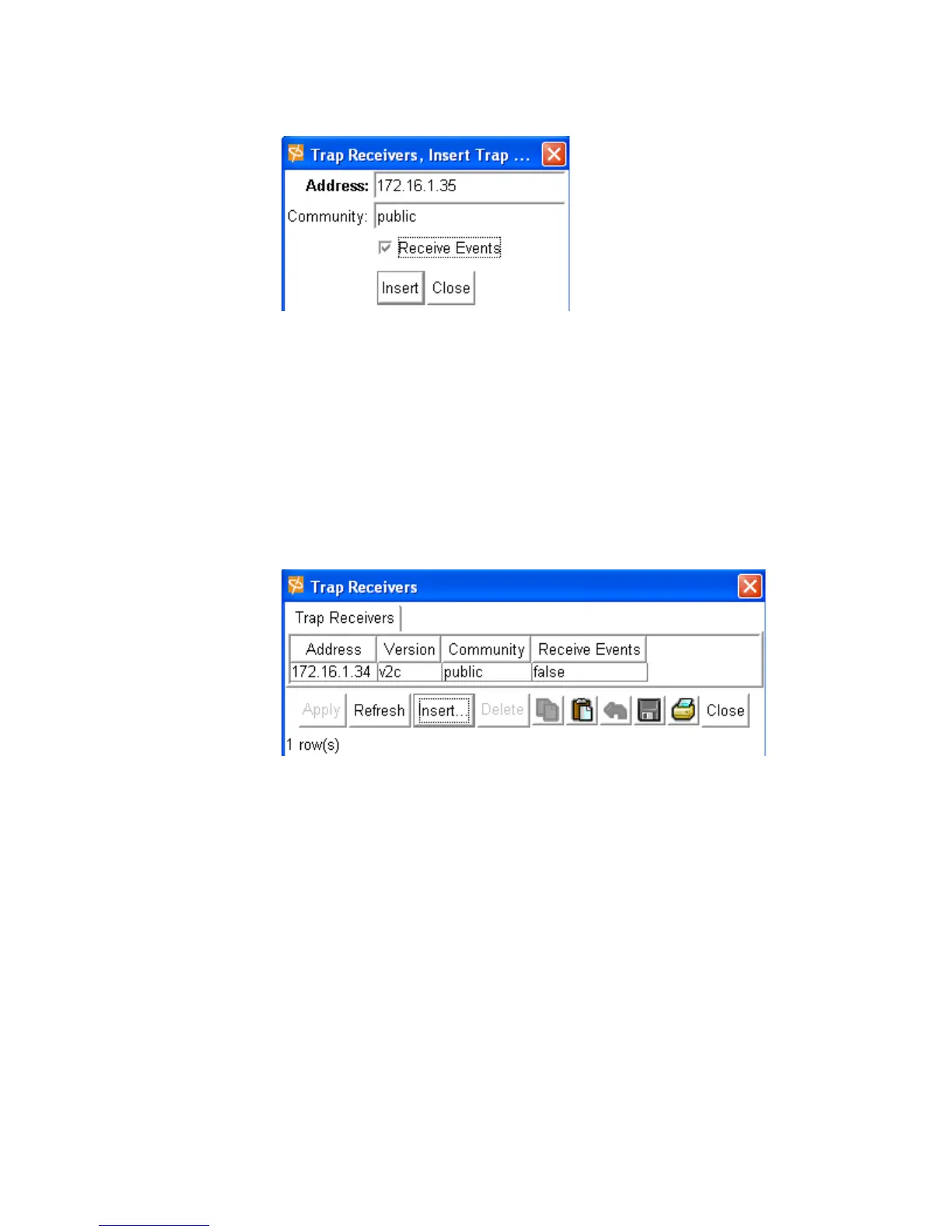

The Trap Receivers, Insert Trap... window appears.
4. Enter the IP address of the desired Trap Receiver in the Address field.
5. Enter the SNMP community string in the Community field.
6. Check the Receive Events box if you want to enable the Trap Receiver to receive events.
You can also add the Trap Receiver, then enable it later.
7. Click the Insert button.
Editing a Current SNMP Trap Receiver
1. Launch Element Manager, if you have not already done so.
2. Select Health --> Trap Receivers.
The Trap Receivers window appears.
Any previously configured Trap Receivers appear in the window.
3. Click in any of the fields to edit them.
Click into the Address field to change the IP address of a Trap Receiver.
Click into the Version field to change the SNMP version. Note: v2C is the highest supported
version.
Click into the Community field to change the SNMP community string.
Click into the Receive Events field to enable or disable the Trap Receiver from receiving
events. The field becomes a drop-down menu when clicked.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP zl and is the answer not in the manual?

HP zl Specifications

General IconGeneral
ModelHP zl
ManagedYes
DimensionsVaries by model
WeightVaries by model
LayerLayer 3
Power SupplyRedundant power supplies supported
ManagementCLI, Web, SNMP
PoEOptional
StackingYes
Jumbo FramesSupported
VLANsSupported
MAC Address TableUp to 64, 000 entries
Operating Temperature0°C to 45°C
Product SeriesProCurve/Aruba zl Series
