HPE FlexFabric 5700 Series Configuration Guide

50

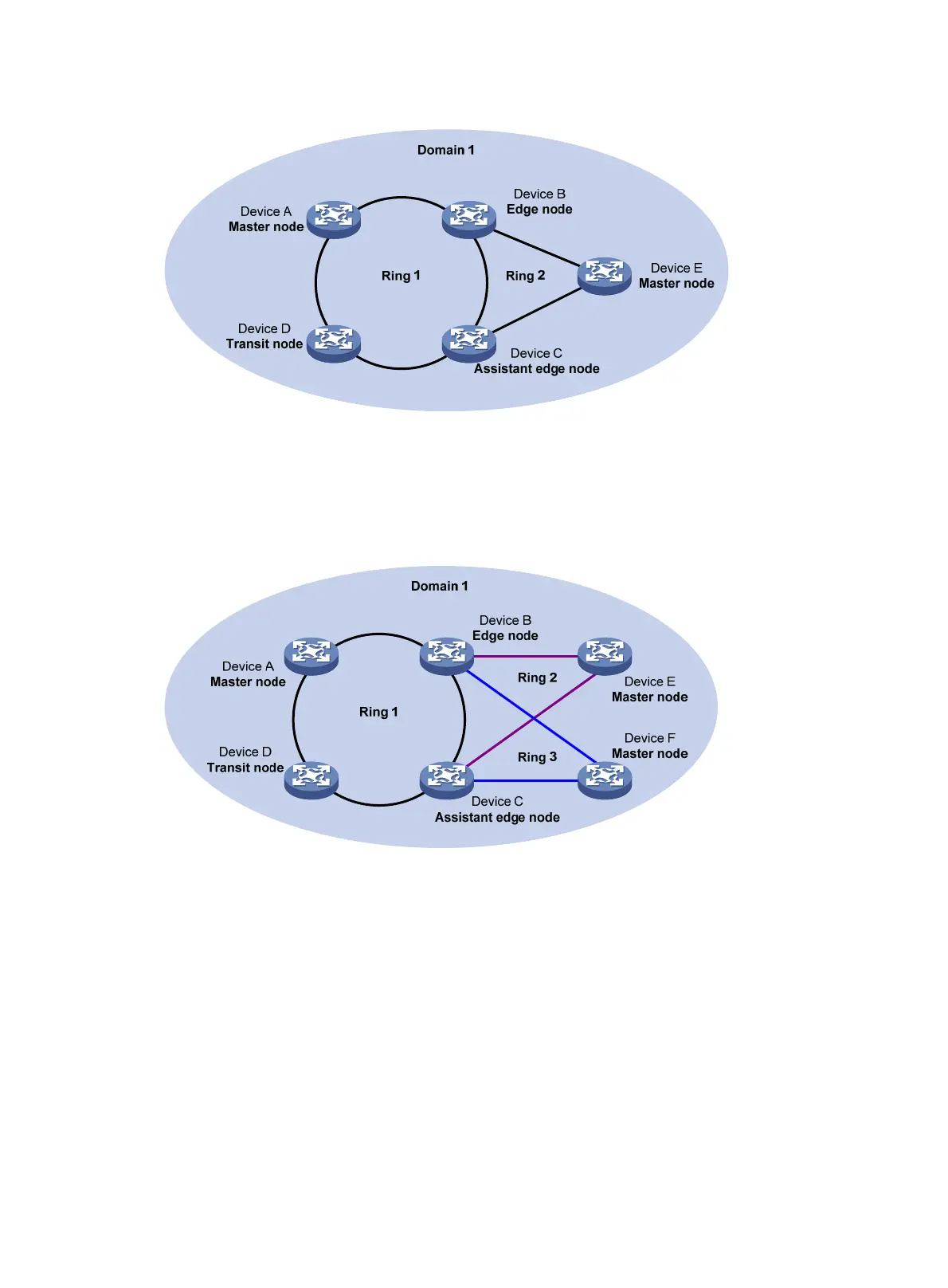

Figure 15 Schematic diagram for an intersecting-ring network
Dual-homed rings
As shown in Figure 16, two or more rings exist in the network topology and two similar common
nodes exist between rings. You need only define an RRPP domain and configure one ring as the
primary ring and the other rings as subrings.
Figure 16 Schematic diagram for a dual-homed-ring network
Single-ring load balancing
In a single-ring network, you can achieve load balancing by configuring multiple domains.
As shown in Figure 17:
• Ring 1 i
s configured as the primary ring of both Domain 1 and Domain 2.
• Domain 1 and Domain 2 are configured with different protected VLANs.
• In Domain 1, Device A is configured as the master node of Ring 1.
• In Domain 2, Device B is configured as the master node of Ring 1.
Such configurations enable the ring to block different links based on VLANs and achieve single-ring
load balancing.

HPE FlexFabric 5700 Series Specifications

General

Product Line	HPE FlexFabric
Model	5700 Series
Power Supply	Redundant power supply options
Layer Support	Layer 2/3
Management	HPE Intelligent Management Center (IMC), CLI, SNMP
Routing Protocol	RIP, OSPF, BGP, IS-IS
Features	Virtualization
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3ae
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% (noncondensing)
Latency	Less than 1 µs
