2. Align the chassis rails with the rail mounting holes in the chassis:
{ If the mounting brackets are in the port-side mounting position, align the chassis rails with
the screw holes at the rear of the side panels (see Figure 8, Figure 9, and Figure 10).
{ If the mounting brackets are in the power supply-side mounting position, align the chassis
rails with the screw holes at the front of the side panels (see Figure 11, Figure 12,
and Figure 13).
3. Use M4 screws (provided) to attach the chassis rails to the chassis.

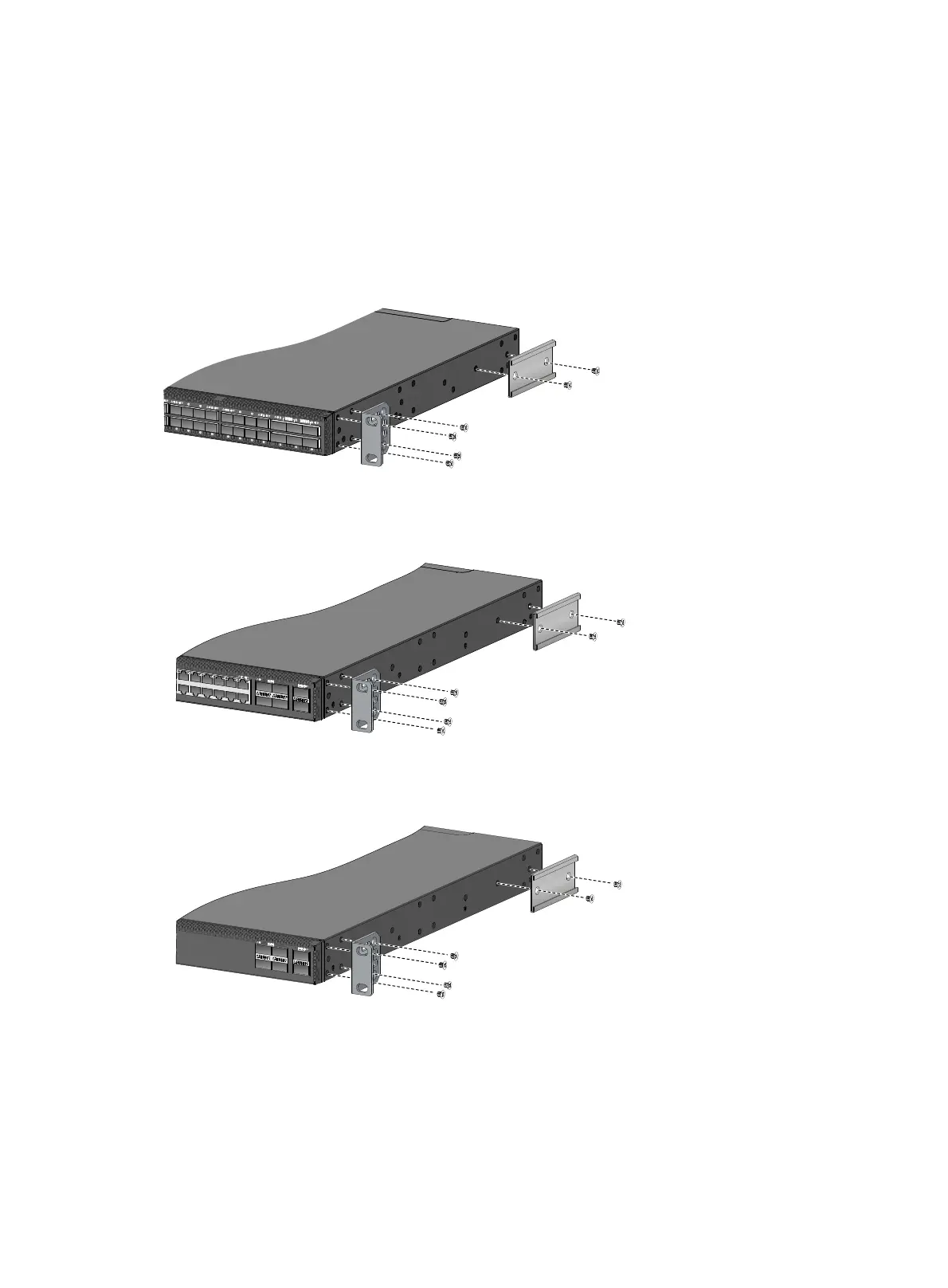

Figure 8 Attaching the mounting brackets and chassis rails to an HPE 5710-54HF switch
(mounting brackets installed near the port side)
Figure 9 Attaching the mounting brackets and chassis rails to an HPE 5710-54HT switch
(mounting brackets installed near the port side)
Figure 10 Attaching the mounting brackets and chassis rails to an HPE 5710-30HT switch
(mounting brackets installed near the port side)

HPE FlexFabric 5710 Series Specifications

General

Model	HPE FlexFabric 5710 Series
Power Supply	AC or DC
Operating Temperature	0°C to 45°C
Routing Protocol	OSPF, BGP, RIP
Input Voltage	100-240V AC
Operating Humidity	10% to 90% (non-condensing)
Jumbo Frame Support	Up to 9216 bytes
Management	CLI, SNMP
