169

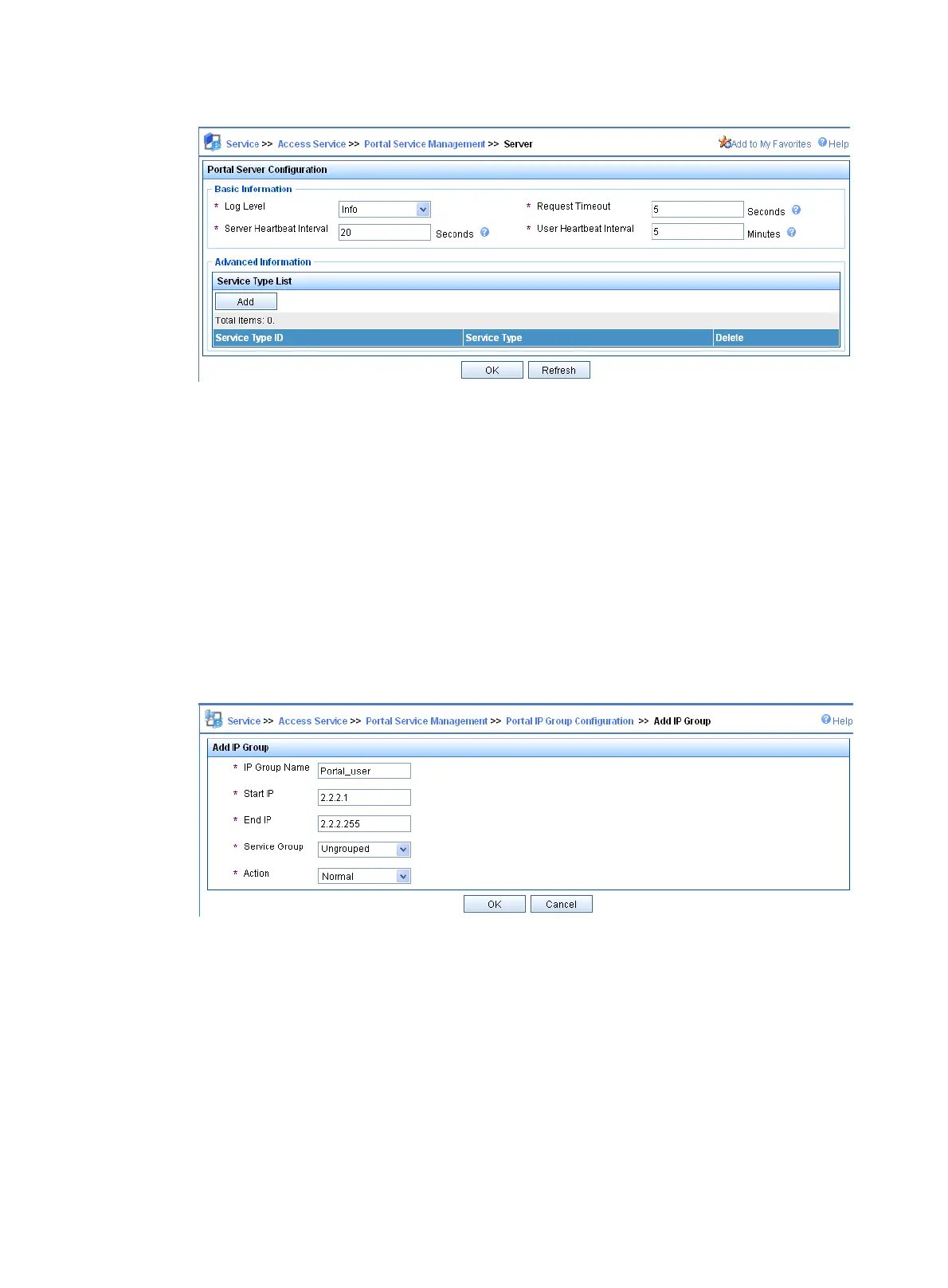

Figure 46 Portal authentication server configuration
2. Configure the IP address group:
a. Select Access Service > Portal Service Management > IP Group from the navigation
tree to open the portal IP address group configuration page.
b. Click Add to open the page as shown in Figure 47.
c. Enter the IP group n
ame.
d. Enter the start IP address and end IP address of the IP group.
Make sure the host IP address (2.2.2.2) is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select the action Normal.
g. Click OK.
Figure 47 Adding an IP address group
3. Add a portal device:
a. Select Access Service > Portal Service Management > Device from the navigation tree
to open the portal device configuration page.
b. Click Add to open the page as shown in Figure 48.
c. Enter the dev
ice name NAS.
d. Enter the IP address of the switch's interface connected to the host.
e. Enter the key, which must be the same as that configured on the switch.
f. Set whether to enable IP address reallocation.
This example uses direct portal authentication. Therefore, select No from the Reallocate IP
list.
To Next Page
