172

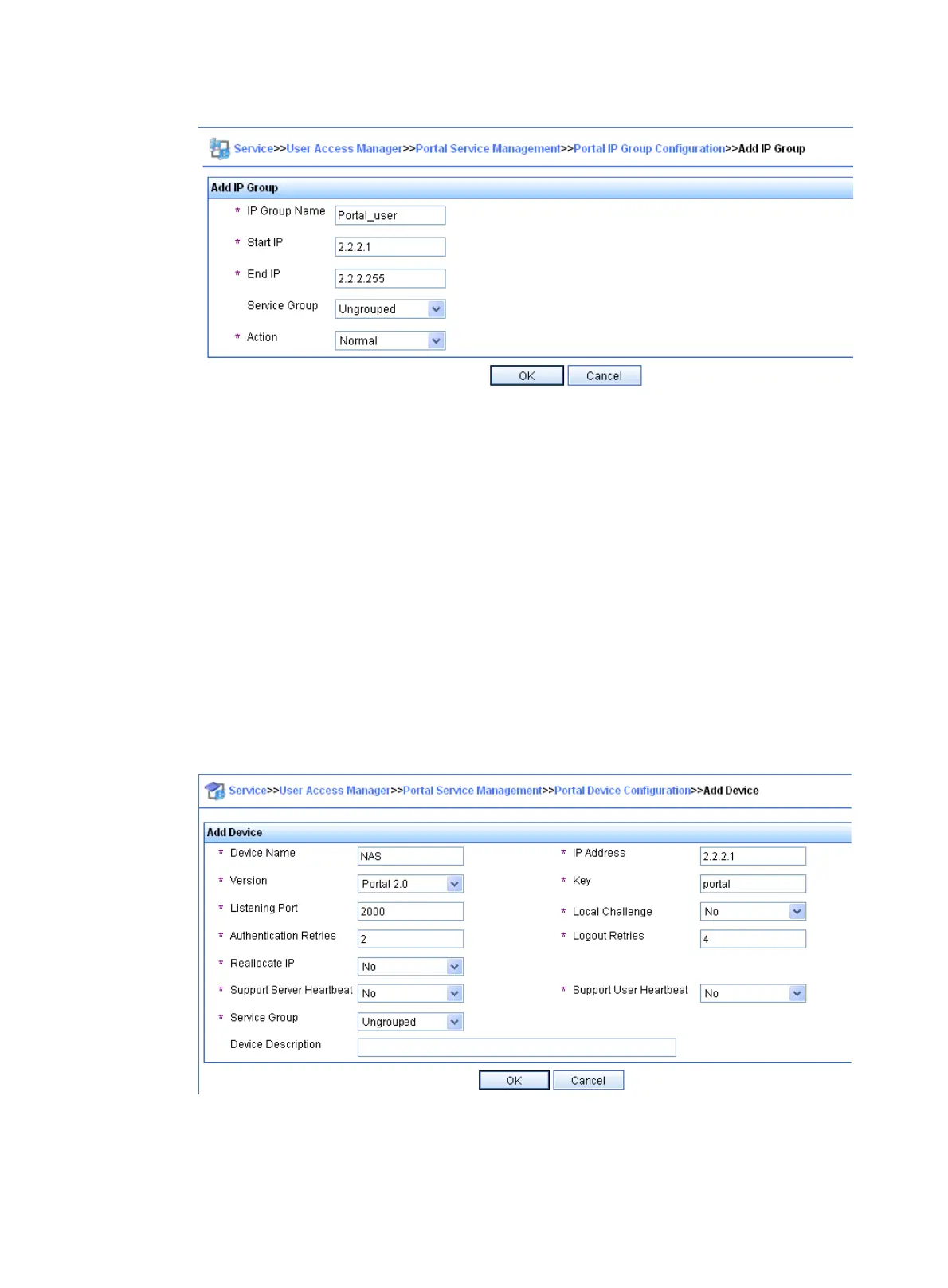

Figure 52 Adding an IP address group
3. Add a portal device:
a. Select User Access Manager > Portal Service Management > Device from the
navigation tree to open the portal device configuration page.
b. Click Add to open the page as shown in Figure 53.
c. Enter the dev
ice name NAS.
d. Enter the IP address of the switch's interface connected to the host.
e. Enter the key, which must be the same as that configured on the switch.
f. Set whether to enable IP address reallocation.
This example uses direct portal authentication, and therefore select No from the Reallocate
IP list.
g. Select whether to support sever heartbeat and user heartbeat functions.
In this example, select No for both Support Server Heartbeat and Support User
Heartbeat.
h. Click OK.
Figure 53 Adding a portal device
4. Associate the portal device with the IP address group:
a. As shown in Figure 54,
click the icon in the Port Group Information Management column
of device NAS to open the port group configuration page.
