Step 2 Securing the baffle plate, as shown in Figure 12-68.

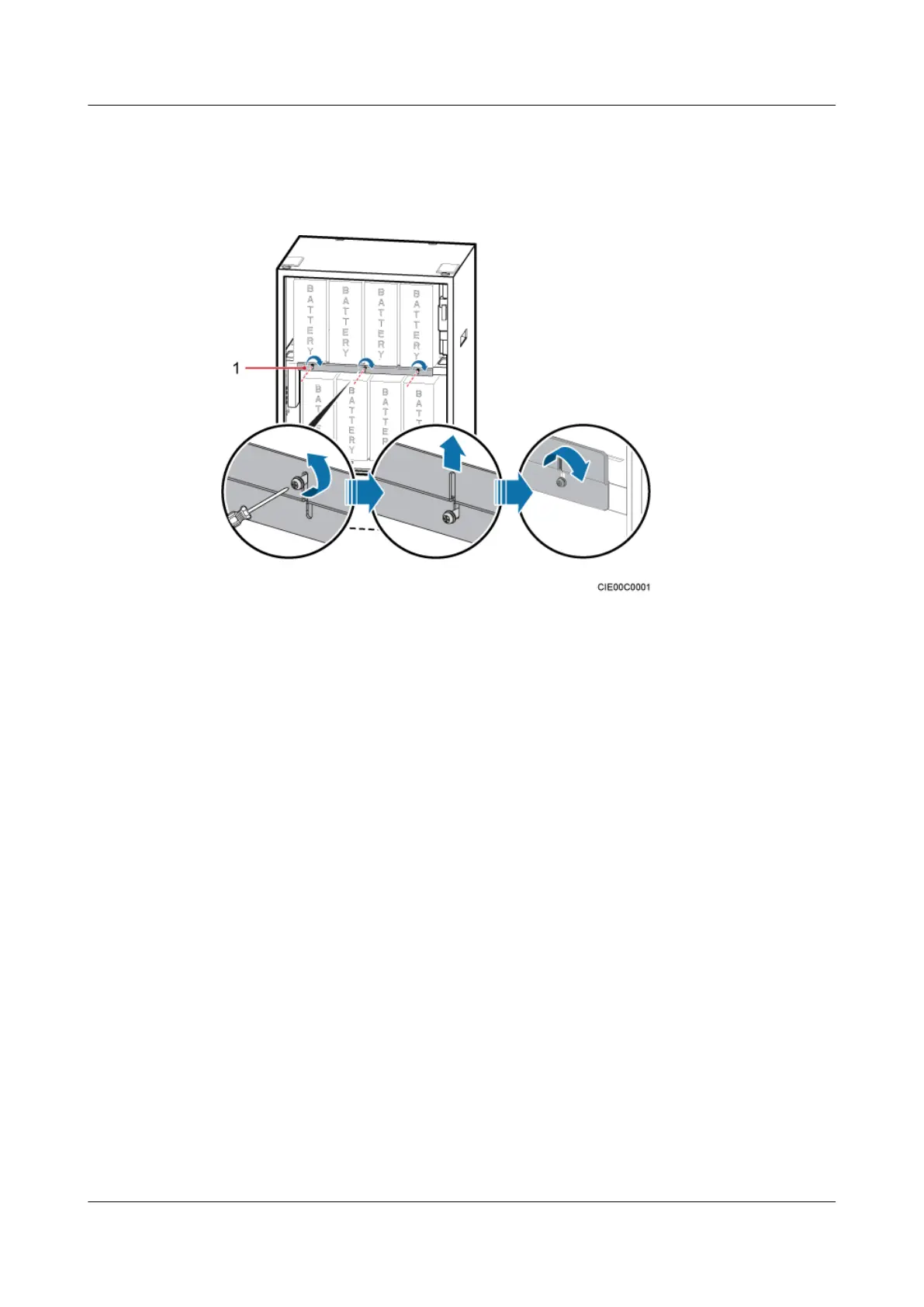

Figure 12-68 Securing the baffle plate
(1) Baffle plate
1. Loosen the three screws on the baffle plate.
2. Move the baffle plate upward until it touches the screws.
3. Tighten the screws to secure the baffle plate until the tightening torque reaches 1.2 N·m
(10.62 lbf·in.).
Step 3 Install the power cable for the batteries, as shown in Figure 12-69.
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
