No. Module/
Board
Optional/
Mandatory
Maximum
Number of
Boards or
Modules
Configured
in a Single
Cabinet
Description
3 DCDU-03 Mandatory 1 The Direct Current Distribution
Unit-03 (DCDU-03) supplies
power to each component in the
TMC11H. The DCDU-03 is of 1
U high.
4 BBU3900 Mandatory 1 The BBU3900 processes the
baseband signals and enables
interaction between the base
station and the BSC or RNC.
5 Heater Optional 1 A heater is an optional
component. It ensures that the
customer equipment in the cabinet
works in a proper temperature
scope when the surrounding
temperature is low. It is installed
in the 1 U space at the bottom of
the cabinet.
Configurations of the IBBS200D

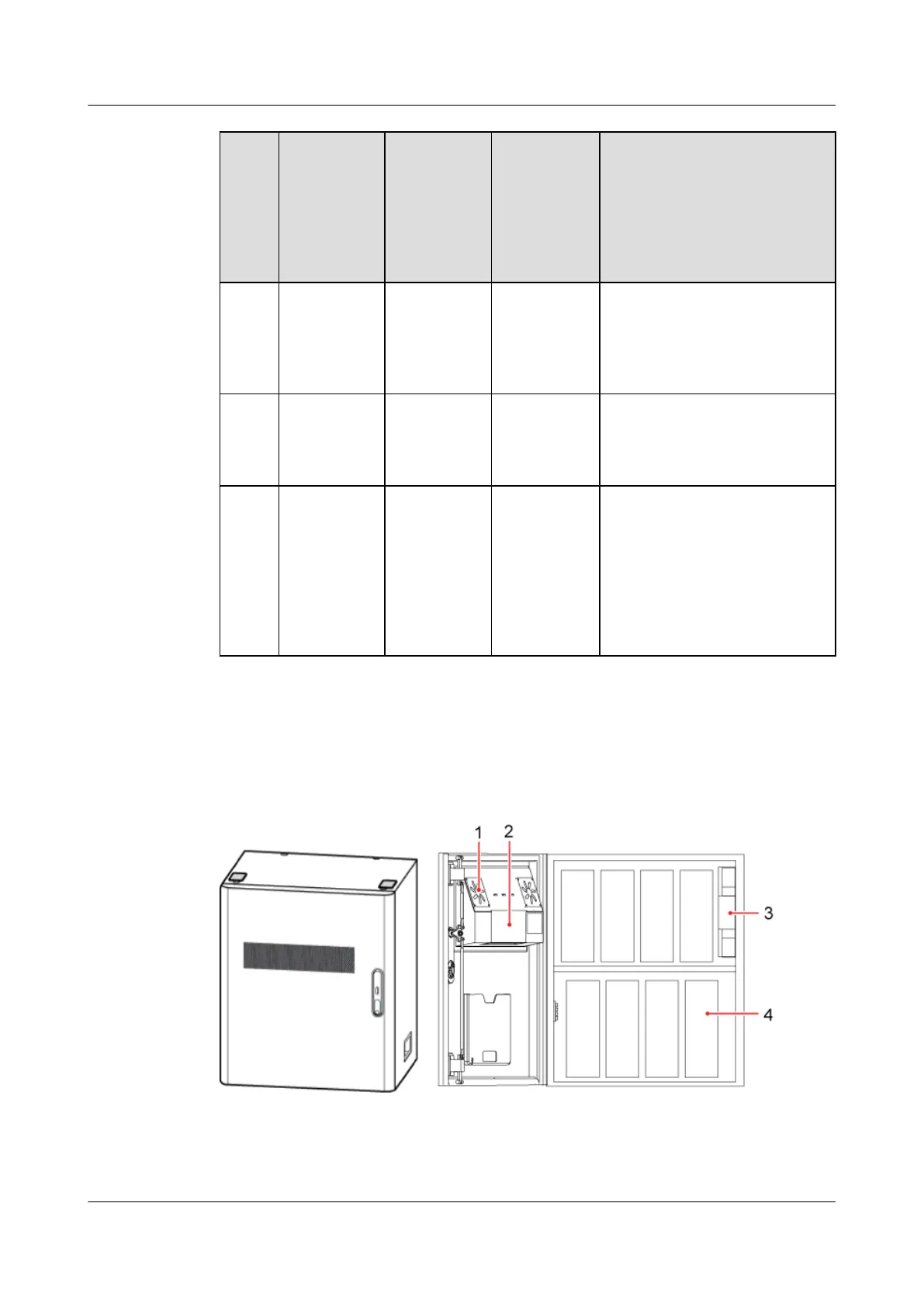

Figure 3-4 shows the exterior and configurations of the IBBS200D.
Figure 3-4 Exterior and configurations of the IBBS200D
Table 3-4 describes the configurations.
