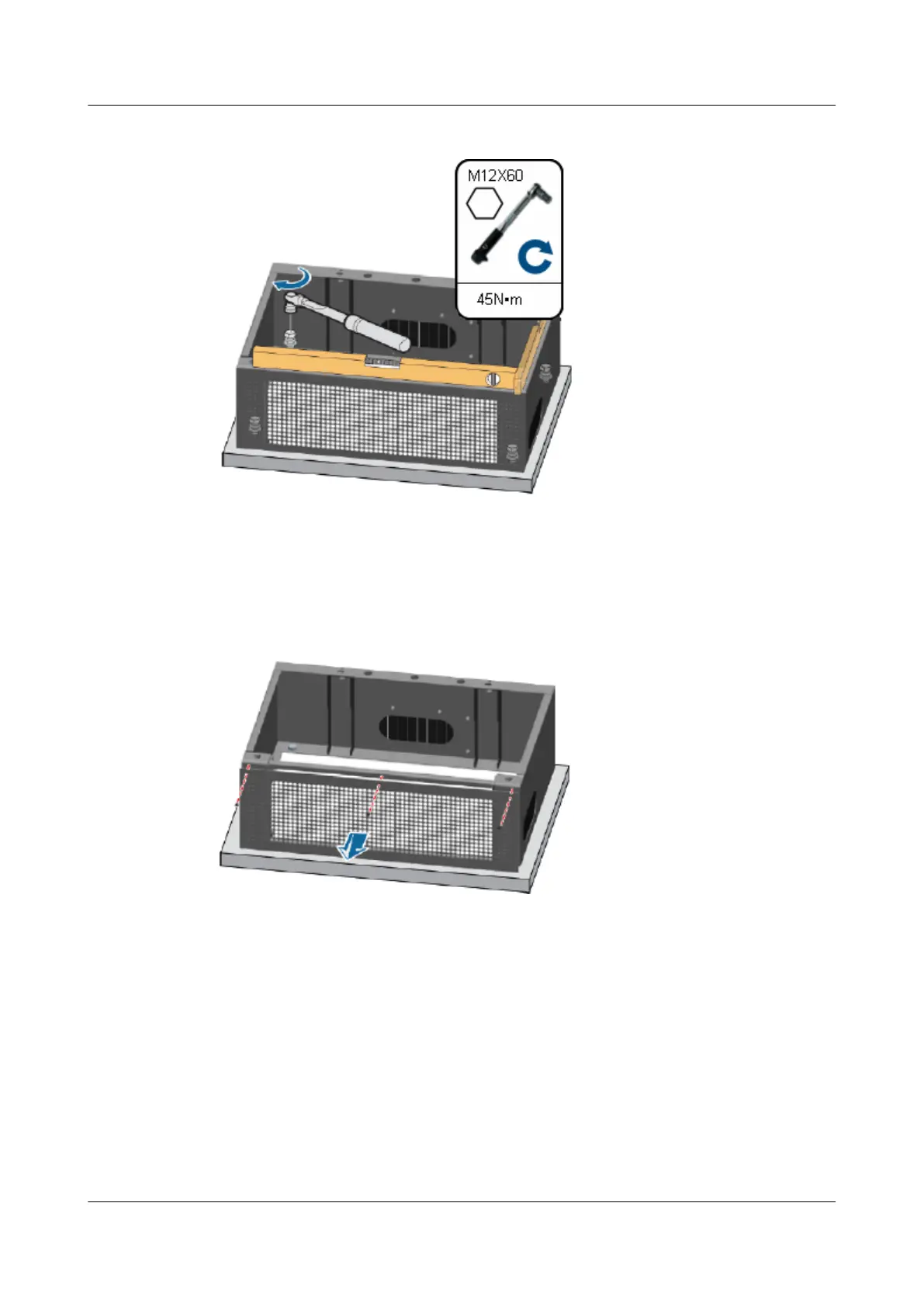

Figure 8-5 Tightening the bolts
Step 7 Loosen the three screws on the front cover plate of the base, and then remove the front cover
plate, as shown in Figure 8-6.
Figure 8-6 Removing the front cover plate
Step 8 Remove the baffle plate from either side of the base (by taking the left side as an example), as
shown in Figure 8-7.
