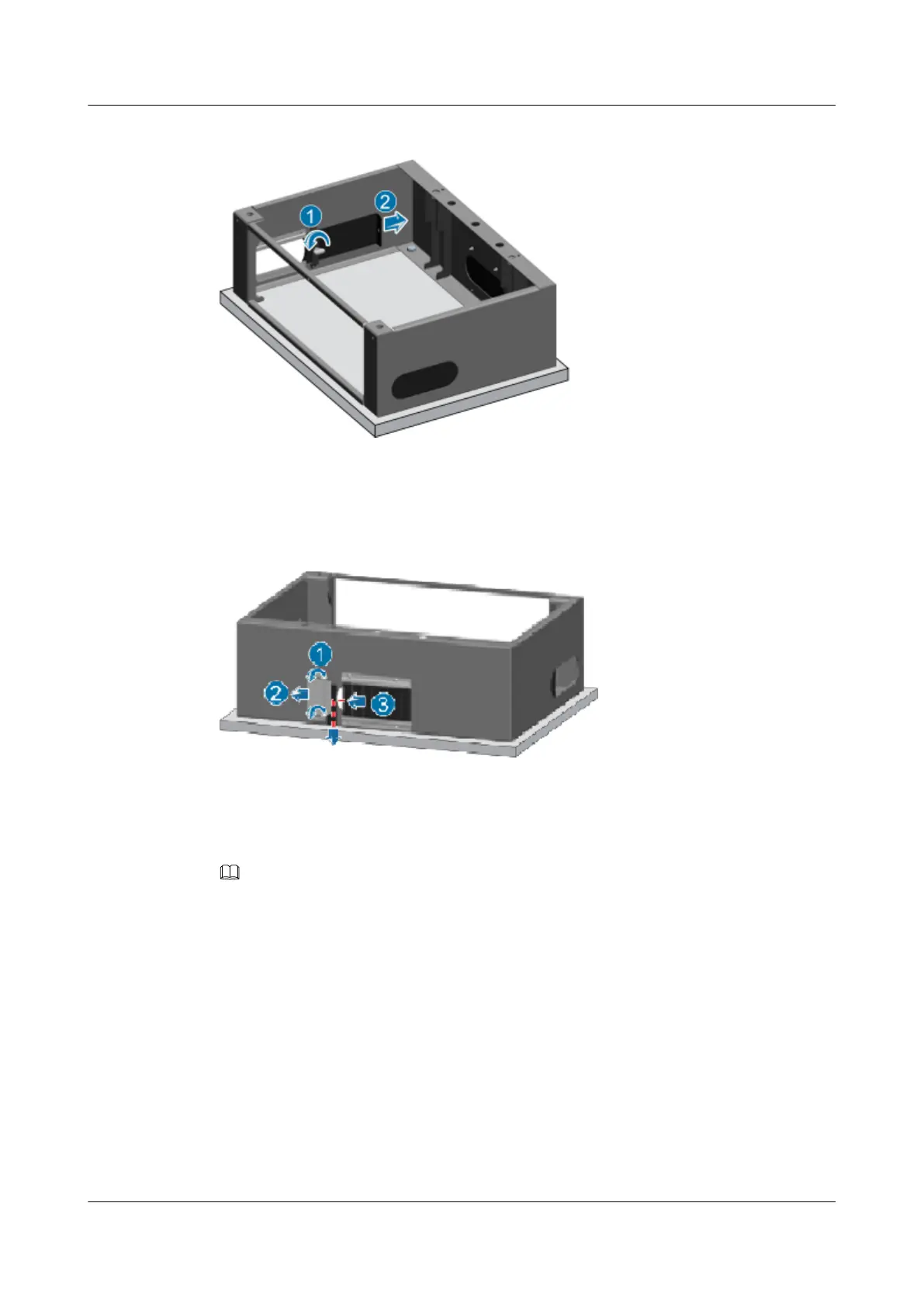

Figure 8-7 Removing the baffle plate
Step 9 Remove the baffle plate from the back of the base, as shown in Figure 8-8.
Figure 8-8 Removing the baffle plate from the back
Step 10 If an RFC needs to be installed on the base, the mounting blocks need to be fixed on the base,
as shown in Figure 8-9.
NOTE
The mounting blocks are placed in the accessory package of the RFC.
BTS3900A(Ver.B)
Installation Guide 8 Installing the Base
