Table 10-1 Cable connections of the straight DIN Bias-Tee
No. Cable Connection
1 Connected to the feeder of the antenna system.
2 Port for the Bias-Tee and RET control signals. Connected to the ports from
ANT0 to ANT5 on the GATM.
3 Connected to the PGND cable.
4 Connected to the jumper of the base station.

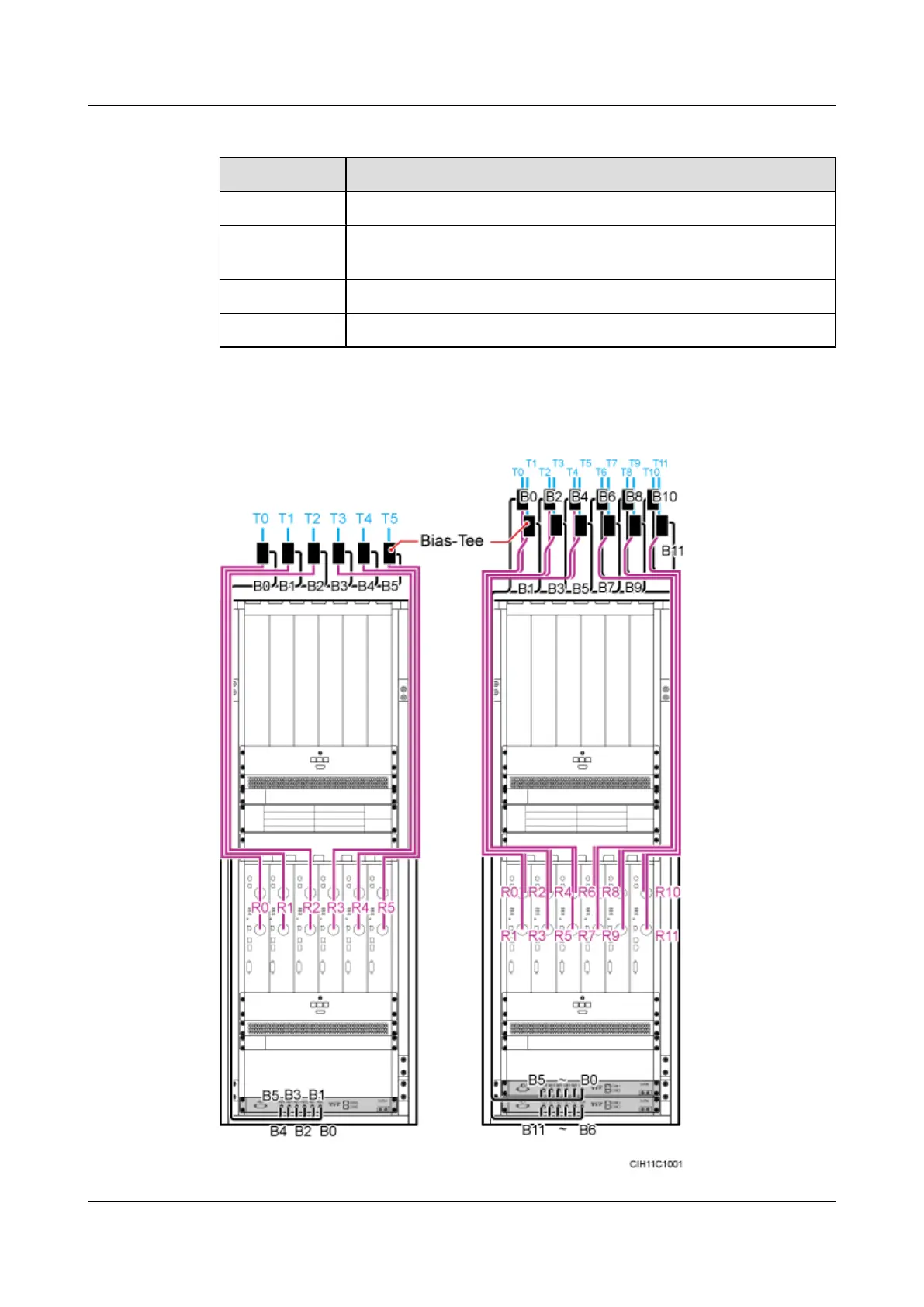

Figure 10-7 shows the cable connections of the GATM and the straight DIN Bias-Tee.
Figure 10-7 Cable connections
BTS3900L (Ver.C)
Installation Guide 10 (Optional) Installing the Modules
Issue 07 (2013-11-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
50
