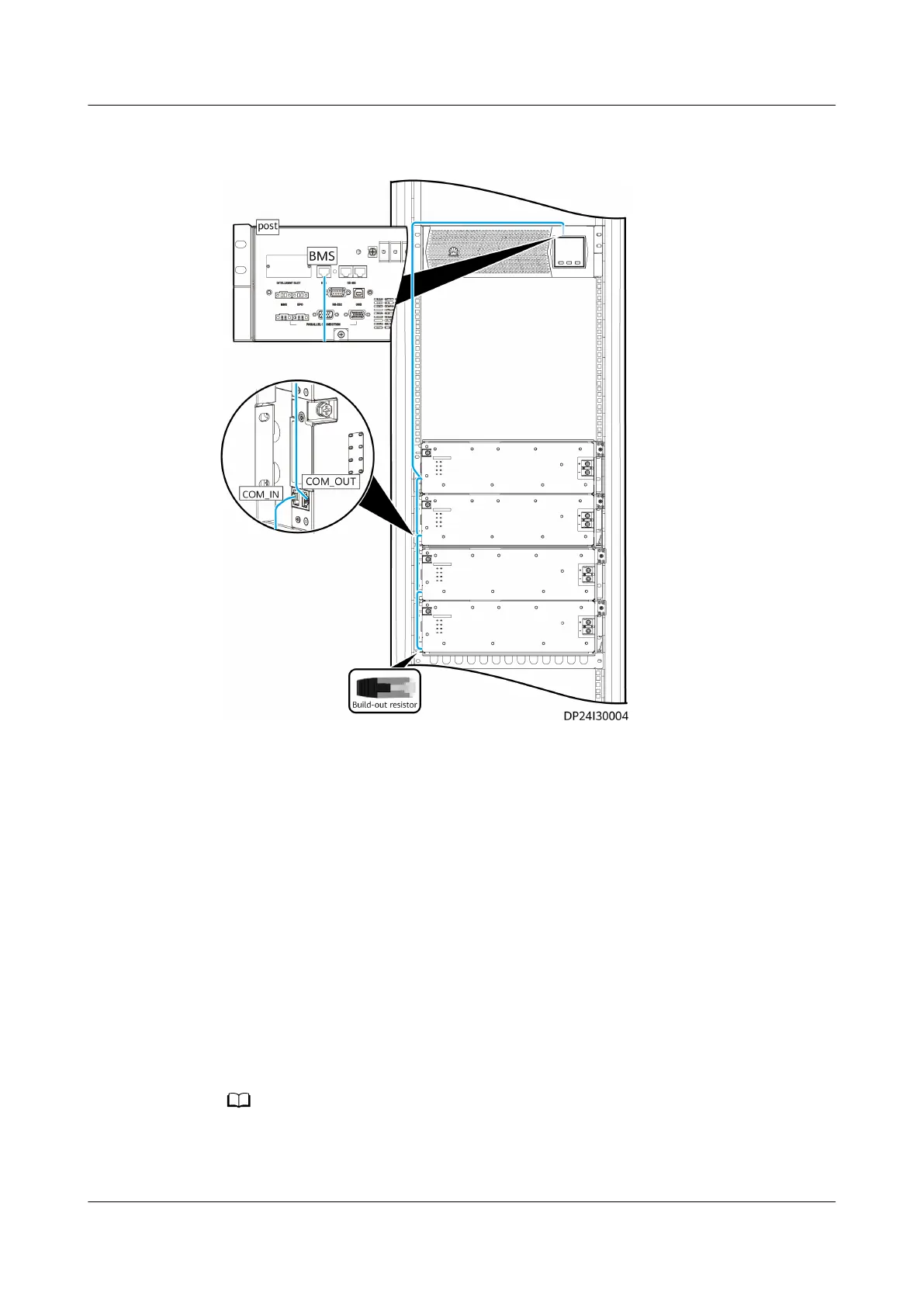

Figure 4-61 Connecting communications cables between lithium batteries and the
UPS
----End
4.3.3 Management System Cable Connection
4.3.3.1 Connecting IVS Cables
Prerequisites
Cables have been prepared.
Procedure
Step 1 Connect one end of the ground cable to the ground terminal on the device and
the other end to the ground point on the cabinet. A Phillips screwdriver and M4
screws are required.
The customer needs to prepare the ground cable.
Step 2 Connect one end of the network cable to any GE network port on the IVS.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 01 (2020-11-30) Copyright © Huawei Technologies Co., Ltd. 105
