2. Install oating nuts at the busbar installation position.
3. Secure the busbar to the installation position using screws.
NO TE
The busbar needs to be installed at the 17th–18th U position. Determine the busbar
installation position based on the lithium battery conguration.

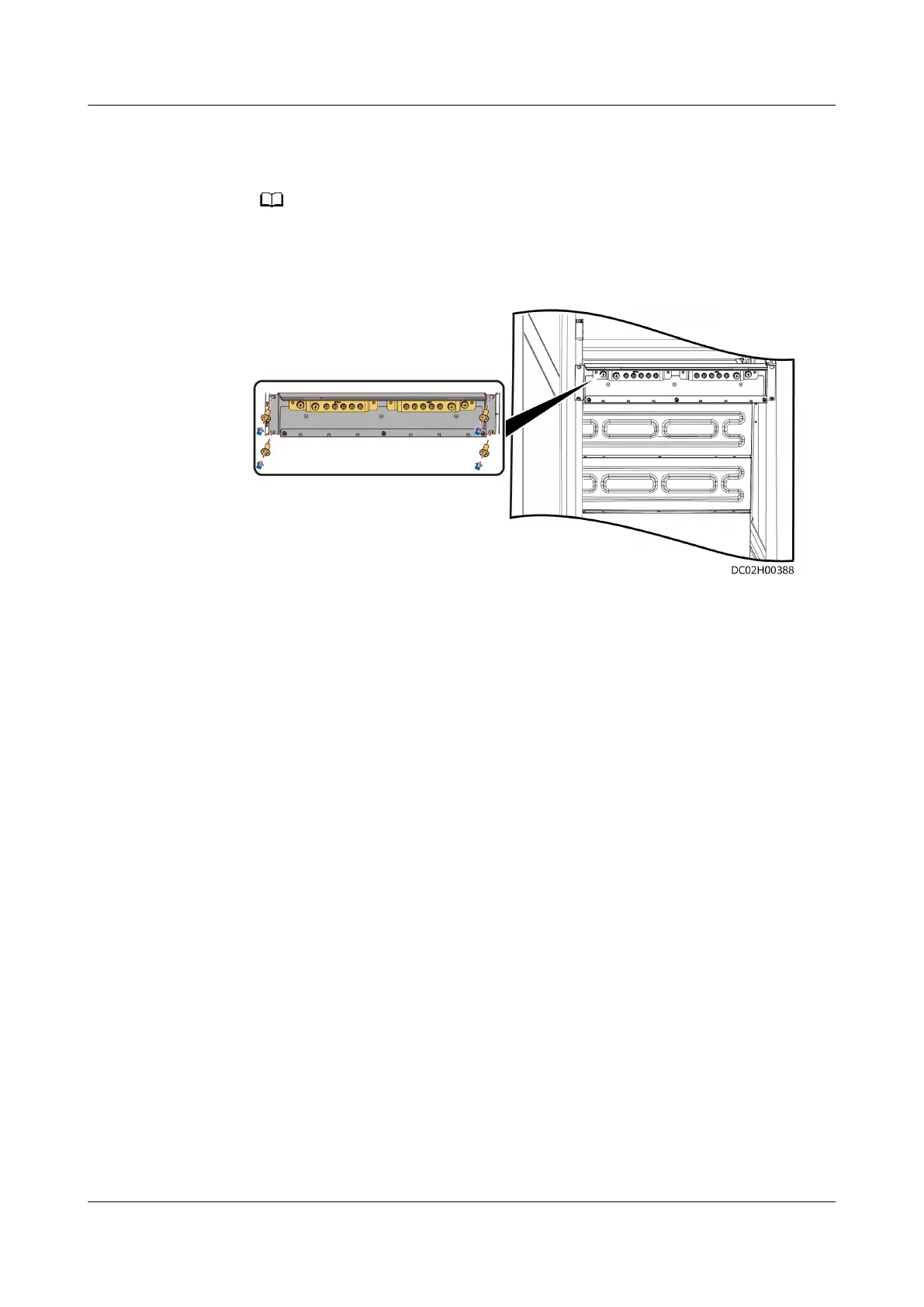

Figure 4-13 Installing busbars
----End
4.2.5.3 Installing rPDUs
Context
Two rPDUs for horizontal installation are
congured.
The two horizontal rPDUs need to be respectively installed at the 11th U and 13th
U positions at the rear door of the cabinet.
Procedure
Step 1 Open the rear door of the cabinet, and install oating nuts in the rPDU
installation position.
Step 2 Secure the horizontal rPDUs using screws.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 01 (2020-11-30) Copyright © Huawei Technologies Co., Ltd. 74
