3.2 Power Supply and Distribution System
3.2.1 Overview
The UPS supplies uninterruptible power to IT loads by means of lithium batteries
when the external power supply fails.

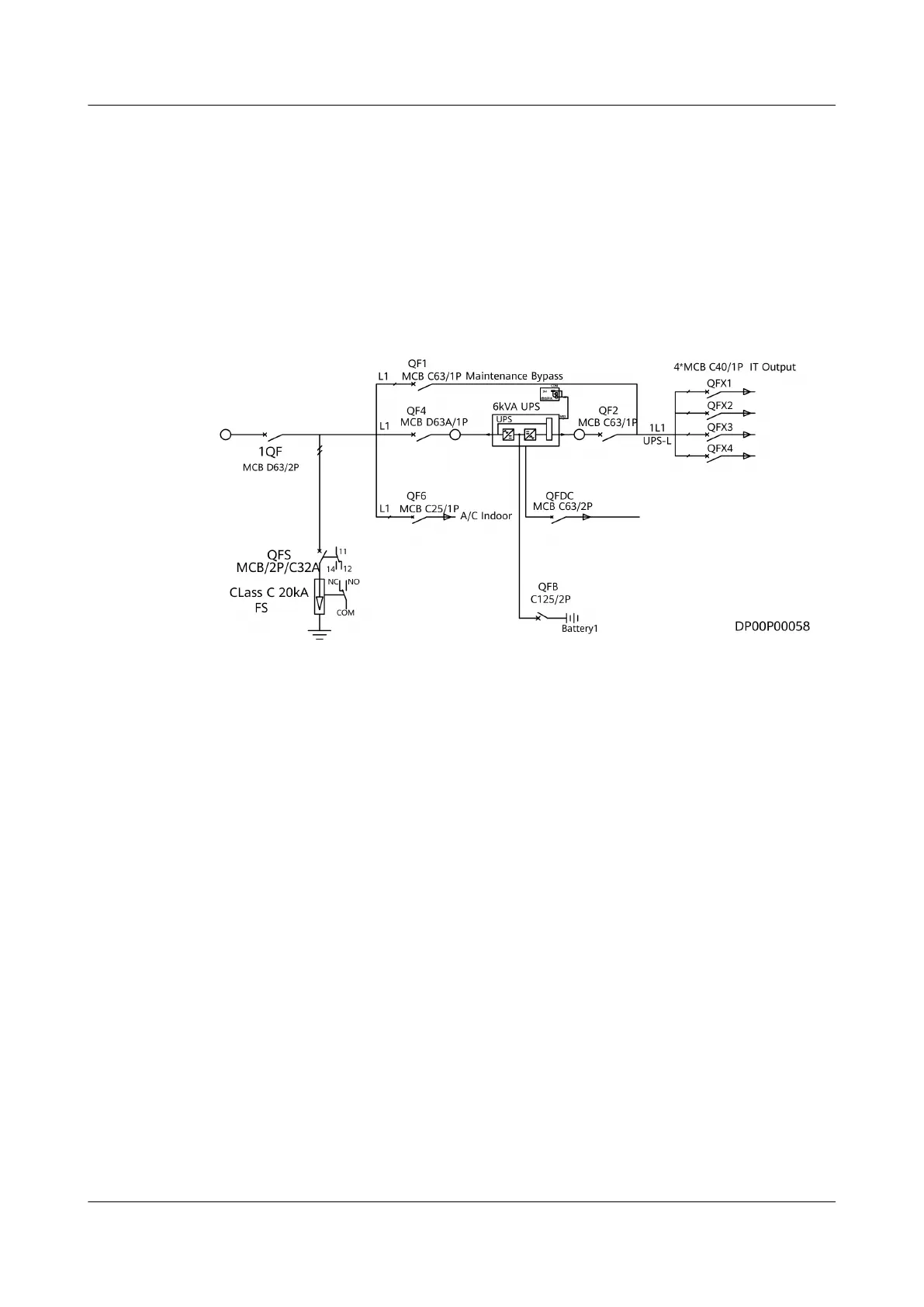

Figure 3-1 Power distribution principles in the UPS scenario
FusionModule500 Smart Mini Data Center
User Manual 3 System Architecture
Issue 01 (2020-11-30) Copyright © Huawei Technologies Co., Ltd. 21
