Huawei iManager NetEco 6000 User Manual

iManager NetEco 6000
Device Installation and Commissioning Guide
4 Connecting Monitoring Cables to Devices
Issue 03 (2019-03-10)
Copyright © Huawei Technologies Co., Ltd.
103

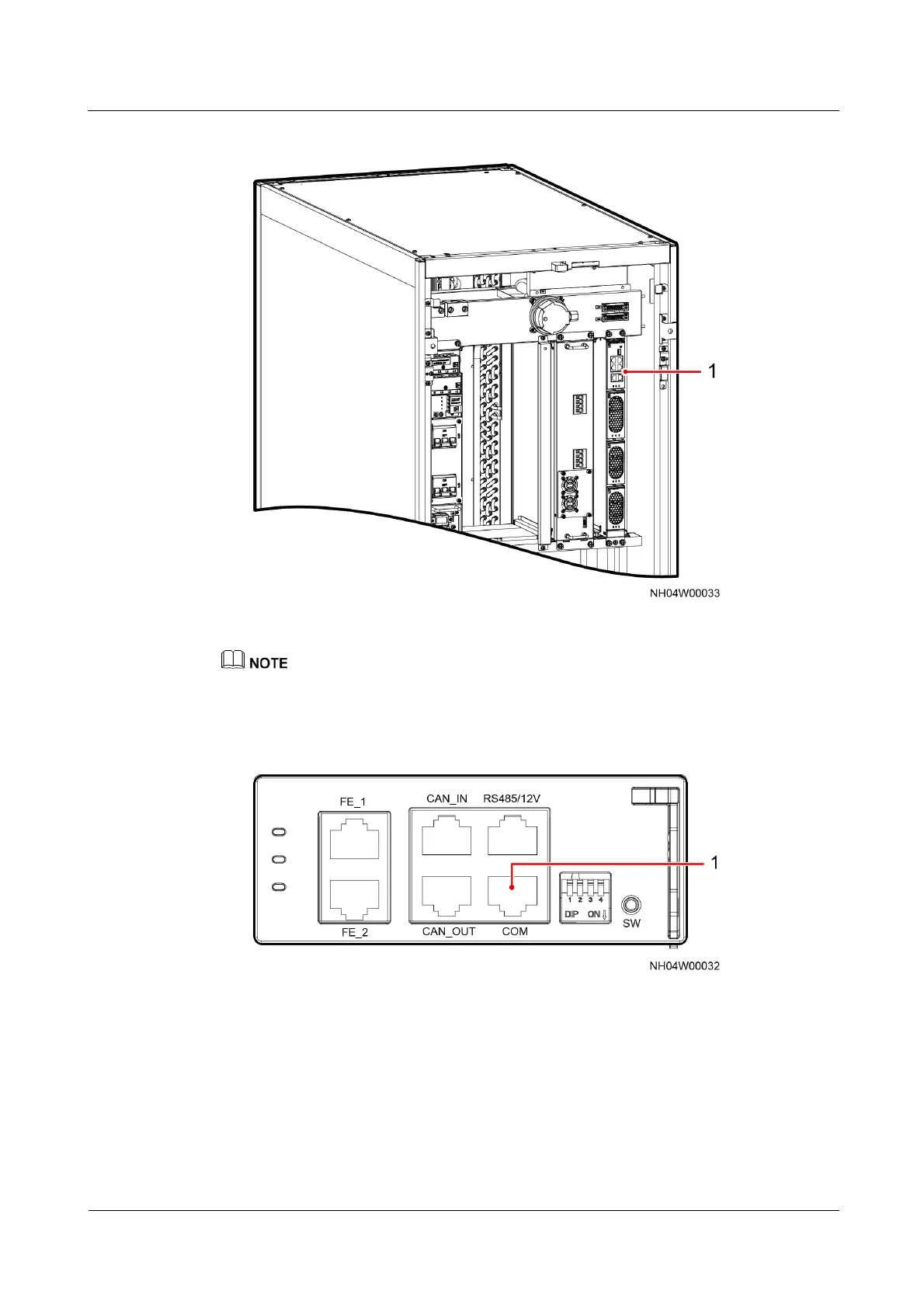

Figure 4-42 NetCol5000-A042 main control module
(1) Main control module
The position of the main control module in NetCol5000-A025 is the same as that in NetCol5000-A042.
Figure 4-43 COM port on the main control module
(1) COM port

Open the smart cooling product rear door, remove the filter, and connect the network
cable to the COM port on the NetCol5000-A035.
