4.2.5.3 Connecting the UPS5000-E or UPS5000-S Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of a network cable to the FE port on the UPS5000-E/UPS5000-S monitoring
module.
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN switch.
----End
4.2.6 Connecting the PDU8000 Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the FE port in the display panel of PDU8000, as
shown in Figure 4-25.

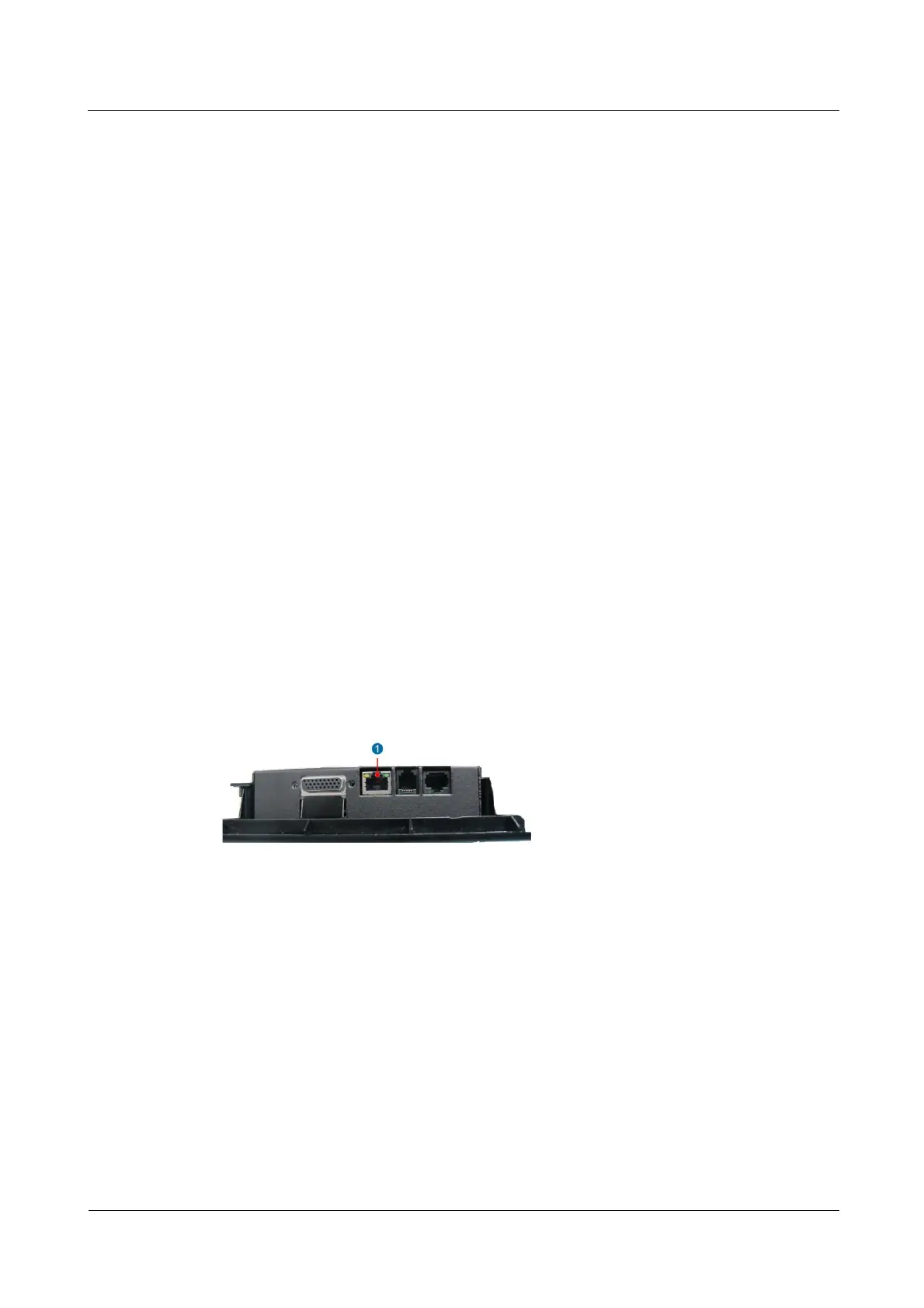

Figure 4-25 Connecting the PDU8000 monitoring cable (FE port)
(1) FE port
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN switch.
----End
4.2.7 Connecting a Monitoring Cable to TP483000D
Prerequisites
A network cable used for monitoring is prepared.
