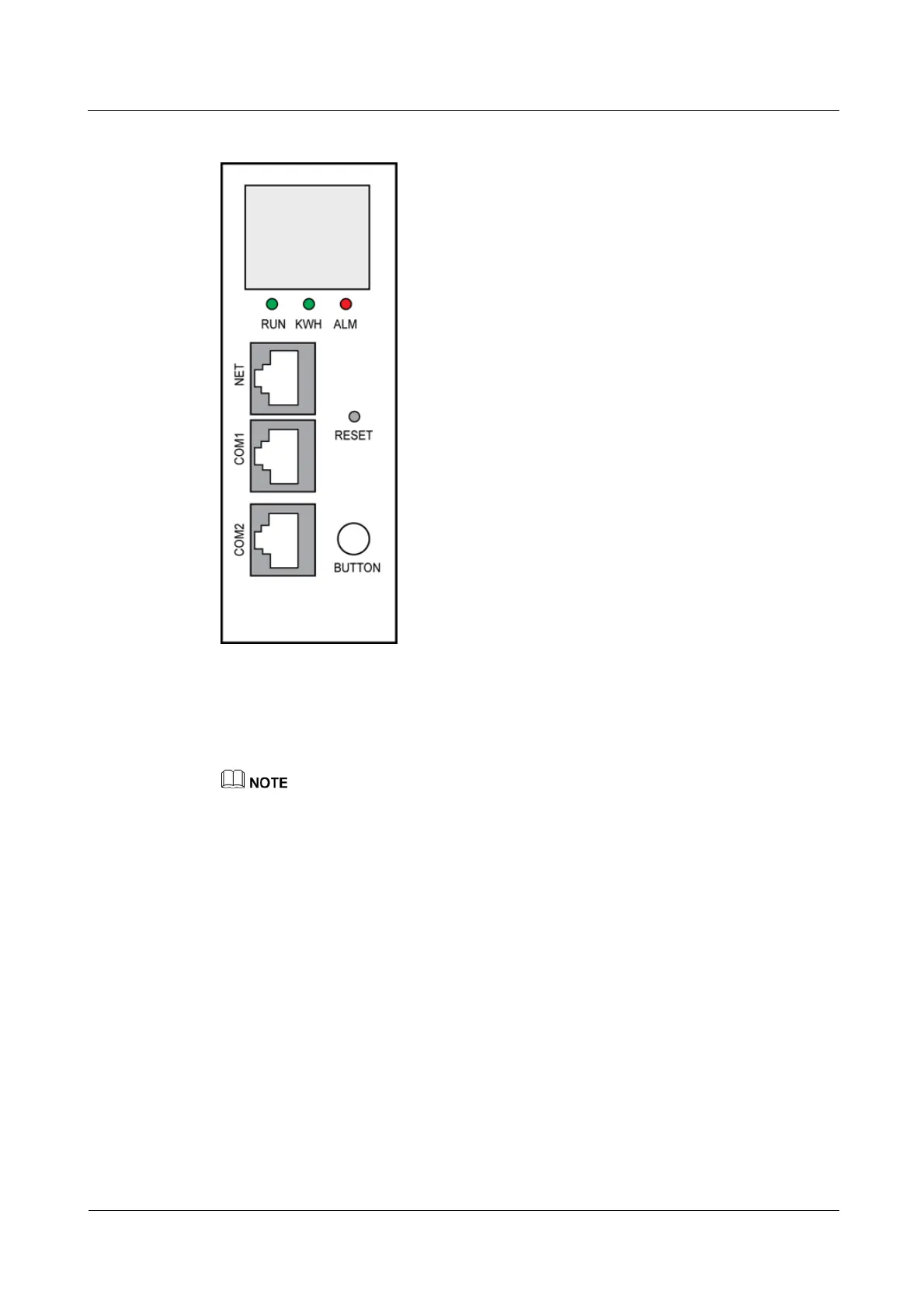

Figure 4-59 PDU2000 ports
Step 2 Connect the other end of the network cable to the COM port on the ECC500 collector.
Step 3 (Optional) If multiple PDU2000s need to be cascaded, connect the COM1 port of one
PDU2000 to the COM2 port on the next PDU2000.
A maximum of four PDU2000s can be cascaded.
----End
4.3.8.3 Connecting a Monitoring Cable to an HPXPDU2000-16-3PH-24-6-M1
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect the monitoring cable.
1. Connect one end of the network cable to port COM1 or COM2 on the PDU2000. Figure
4-60 shows the ports on the PDU2000.
