4.3.8 Connecting the PDC Monitoring Cable
4.3.8.1 Connecting the PDU8000 Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the COM port in the display panel of PDU8000.

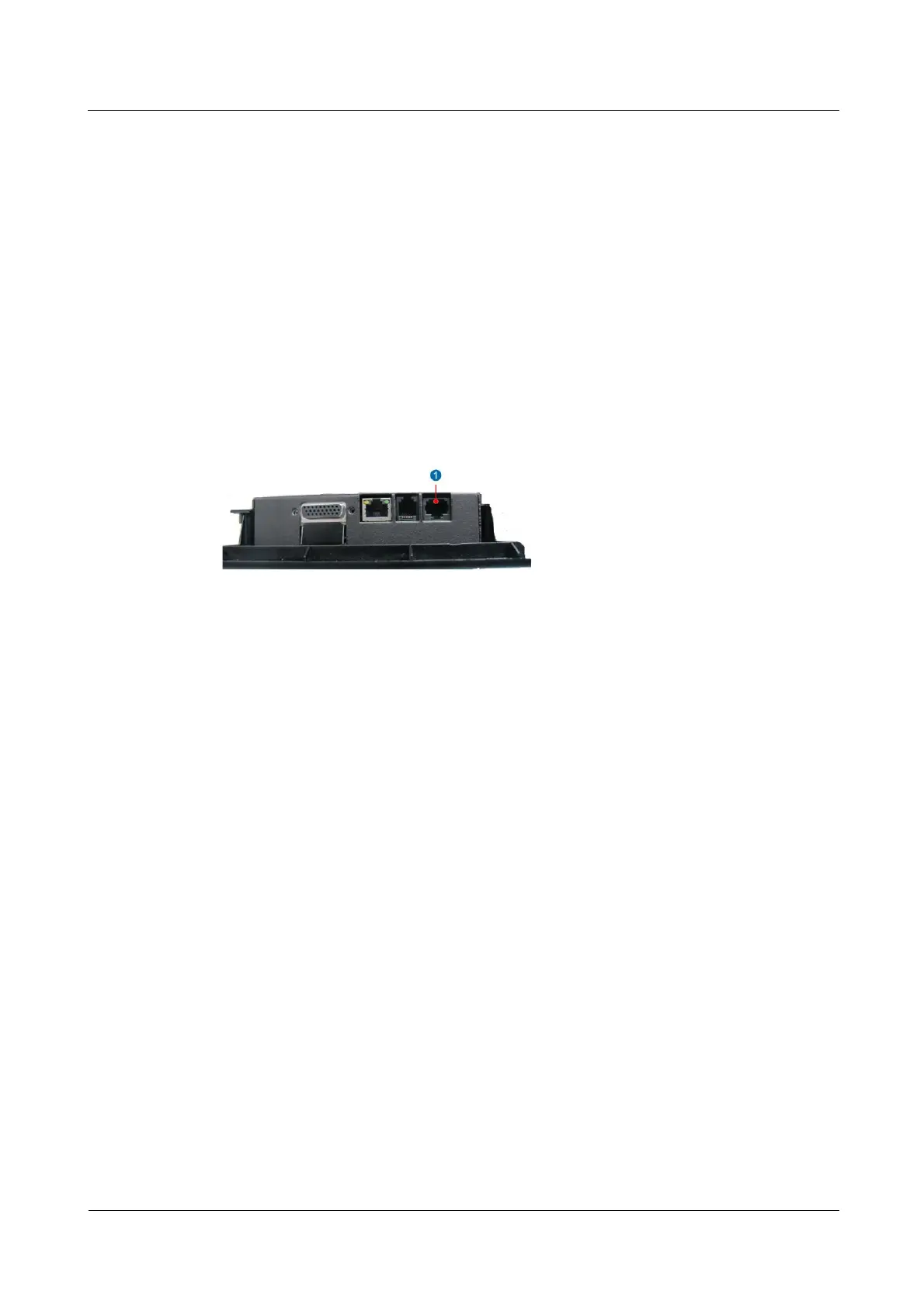

Figure 4-58 Connecting the PDU8000 monitoring cable (COM port)
(1) COM port
Step 2 Connect the other end of the network cable to the COM port of the ECC collector.
----End
4.3.8.2 Connecting a Monitoring Cable to the Monitoring
Type-PDU2000-32-1PH-20/4-M1
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the COM1 port or the COM2 port on the PDU2000.
