iManager NetEco 6000
Device Installation and Commissioning Guide
2 Installation Preparations
Copyright © Huawei Technologies Co., Ltd.
2.4 Installation Description
Prerequisites
The UPS, smart cooling product, and power distribution cabinet (PDC) have been installed
and commissioned.
System Networking

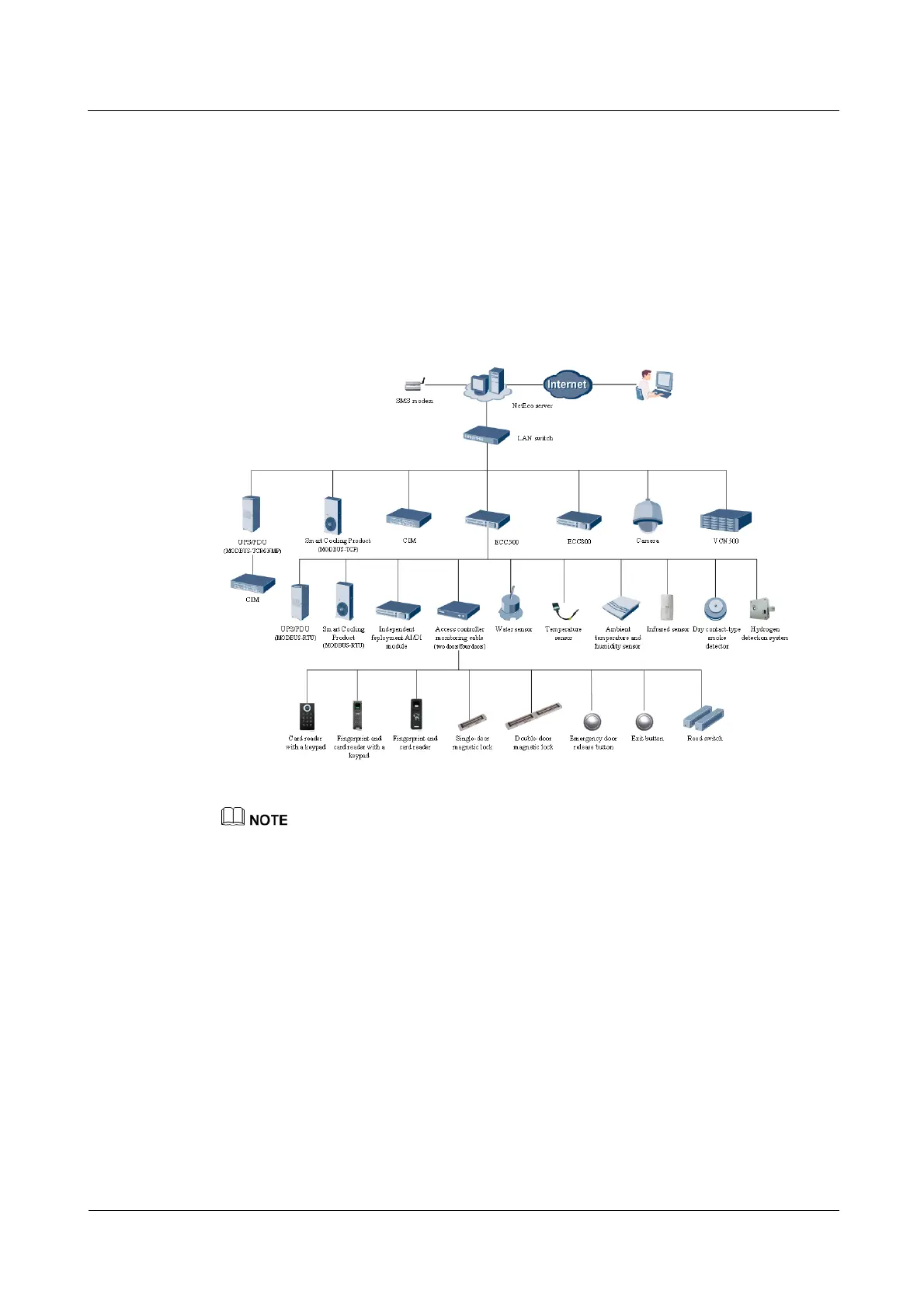

Figure 2-1 Device networking
When the number of AI/DI ports for the ECC500 collector or the ECC800 collector is insufficient,
collect the device to the independent deployment AI/DI unit.
