4.2.5 Connecting the UPS Monitoring Cable
4.2.5.1 Connecting the UPS2000-G Monitoring Cable (SNMP)
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of a network cable to the Ethernet port on the SNMP card of the
UPS2000-G.

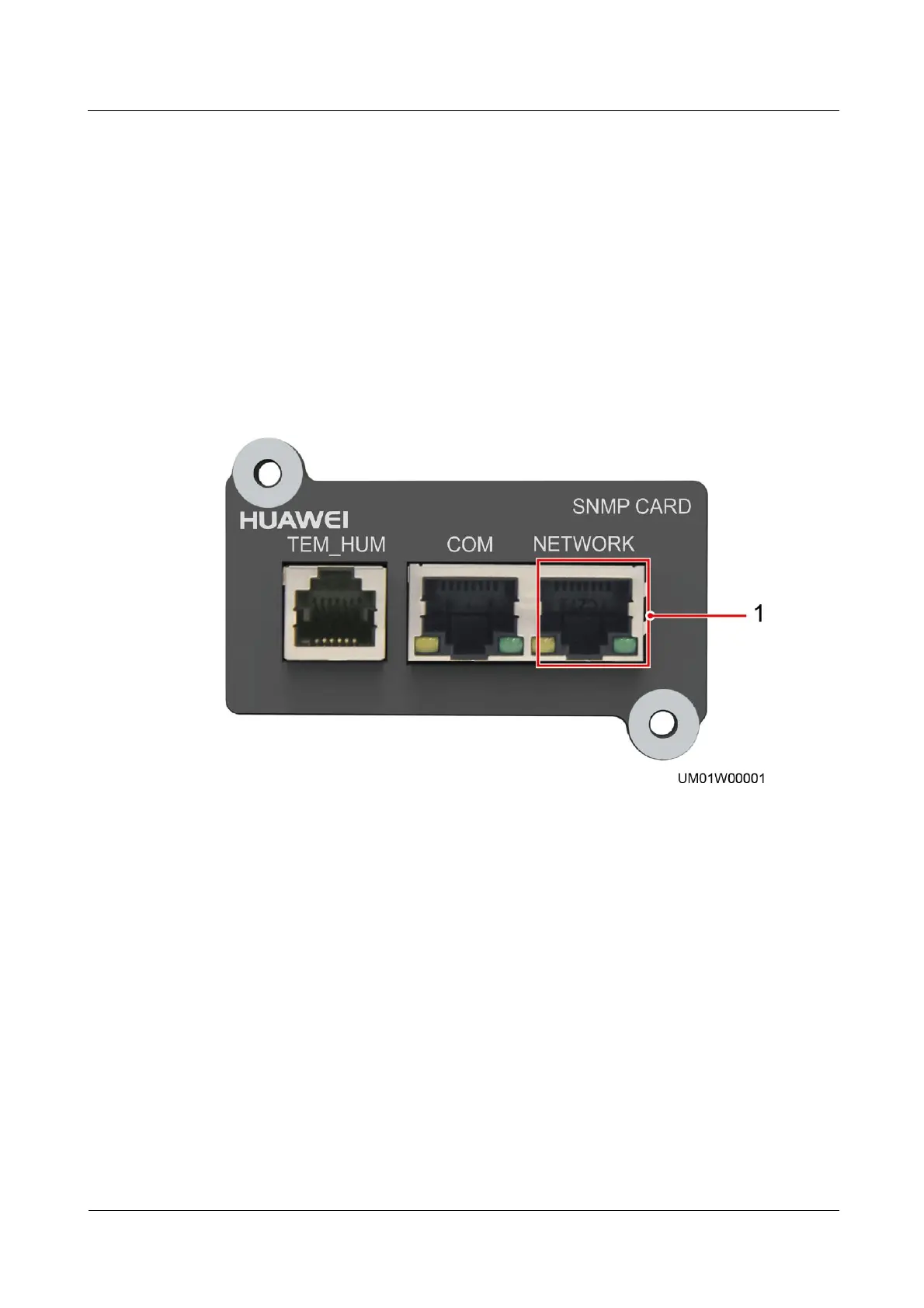

Figure 4-21 Ethernet port
(1) Ethernet port
Step 2 Connect the other end of the network cable to the Ethernet port on the switch.
----End
4.2.5.2 Connecting the UPS5000G-A Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of a network cable to the FE port of the UPS5000-A.
