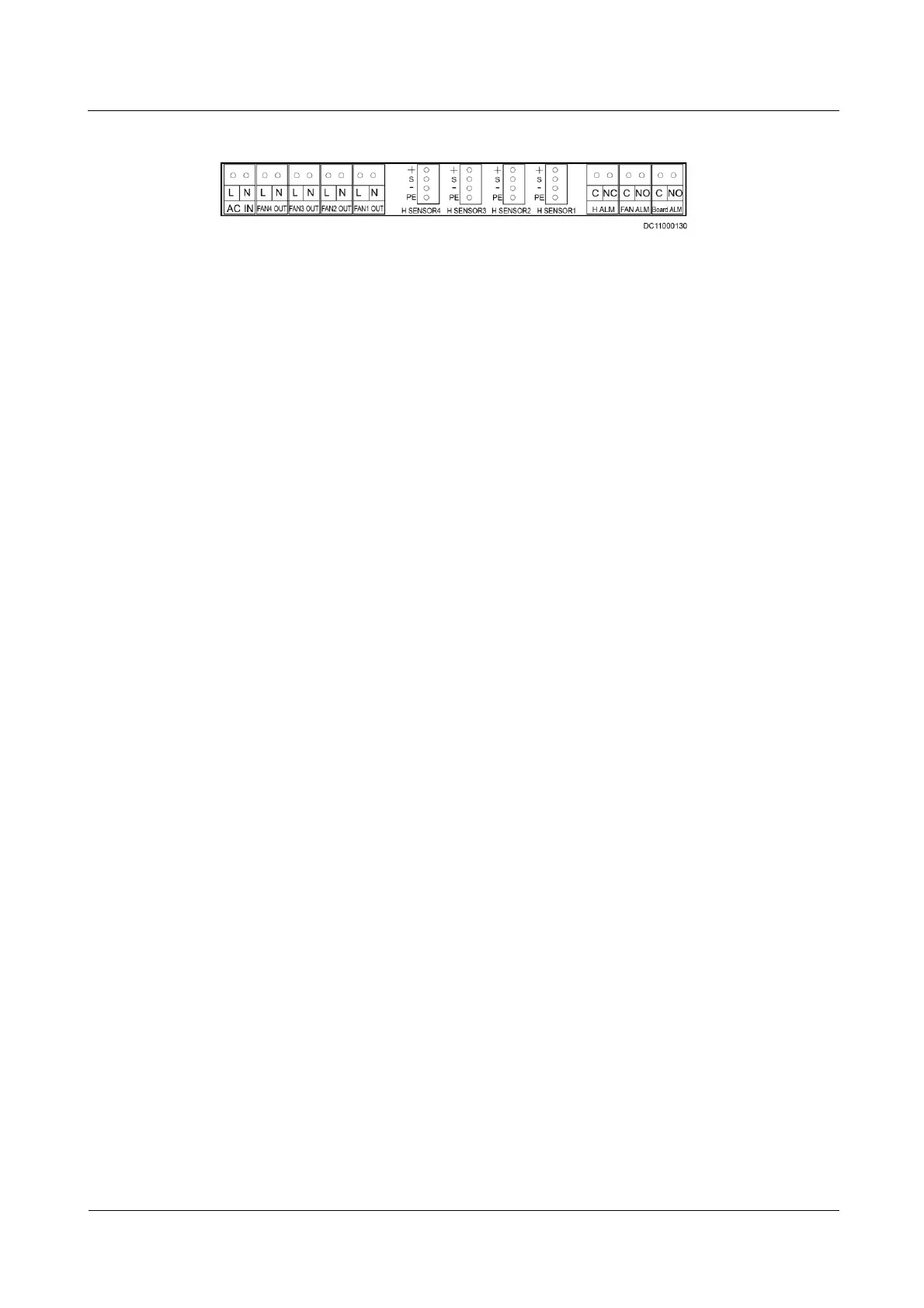

Figure 3-14 Connecting cable 2
----End
3.6.3 Installing an SDLH-94R Dry Contact-type Smoke Detector
Context
The smoke detector is used to detect the smoke density indoors. When the smoke density
exceeds the alarm threshold, the detector generates alarms.
The smoke detector is applicable to the space with an area less than 20 square meters and
a height less than 6 m.
The smoke detector is installed on the top of the room within the area to be detected.
Prior to installing the smoke detector, properly connect the detector cables to avoid
unnecessary rework.
Procedure
Step 1 Take out the smoke detector base and mark mounting holes for the base in the appropriate
position.
Step 2 Drill holes and install expansion tubes. Install the smoke detector base to the top of the room.
