1. If the magnet cannot attract the door properly after power-on, place a magnetized metal
part near the magnet to check whether the magnet provides a proper magnetic force.
2. If the magnetic lock and the magnet do not work properly, check and troubleshoot the
circuit.
----End
3.8.4 Installing a Fingerprint and Card Reader with a Keypad
Context

It is recommended that the product be installed 30–300 mm close to the equipment room
door and 1.4–1.6 m above the floor.

Do not install the product in a place with heavy dust or exposed to sunlight.
Procedure
Step 1 Remove the screws (set aside) from the fingerprint and card reader with a keypad and remove
the baseplate, as shown by (1) in Figure 3-57.
Step 2 Mark the mounting holes using a marker, and drill holes using a hammer drill.

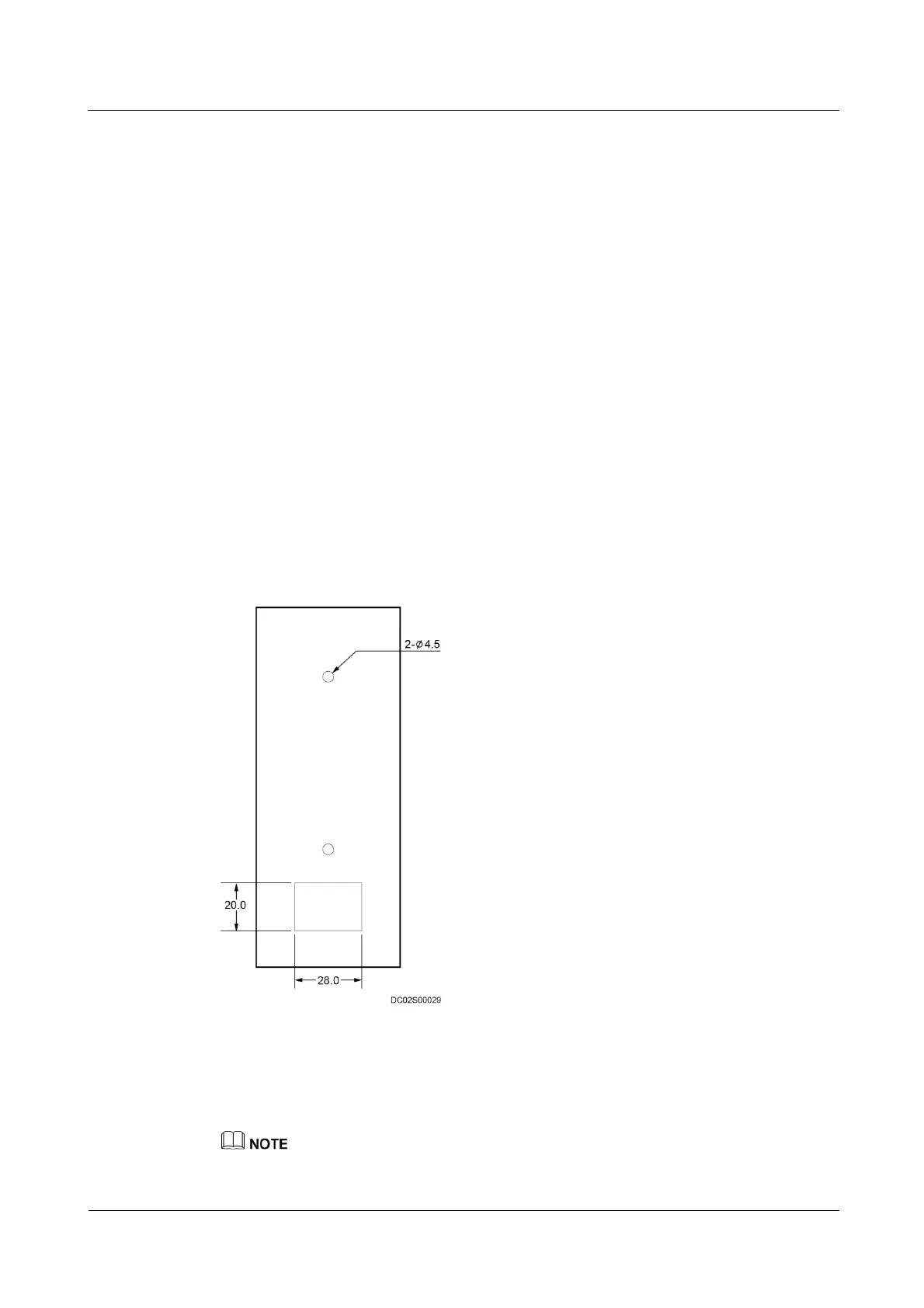

Figure 3-56 Marking mounting holes (unit: mm)
Step 3 Install the baseplate, as shown by (3) in Figure 3-57.
Step 4 Route the cable of the fingerprint and card reader with a keypad through the cable hole in the
baseplate, as shown by (4) in Figure 3-57.
The fingerprint and card reader with a key pad is connected to the access actuator by a network cable.
