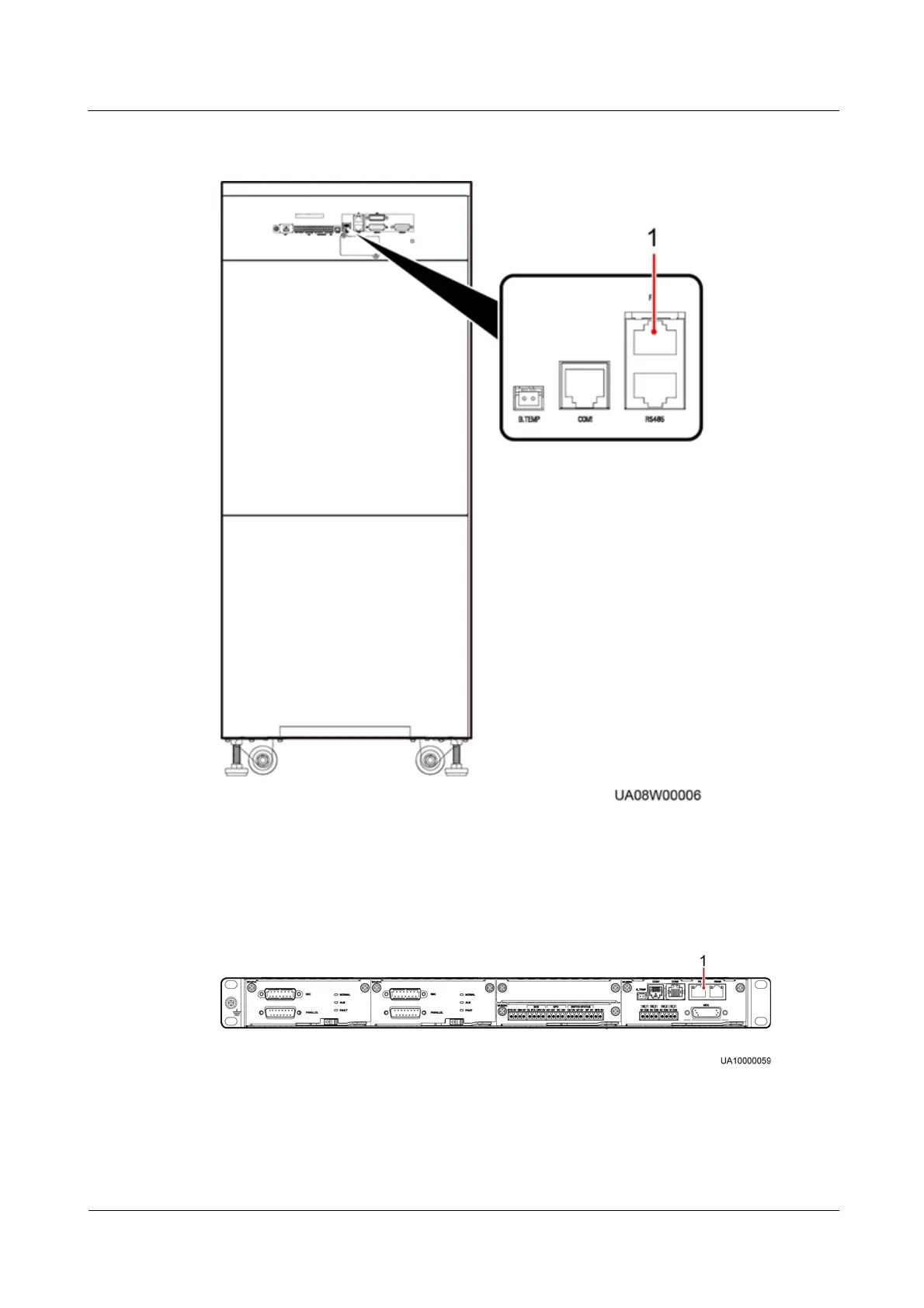

Figure 4-23 UPS5000-A-60 kVA/80 kVA/120 kVA functional components and control signal
ports
(1) FE port
Figure 4-24 FE port on the UPS monitoring module of the 300 kVA UPS and models with higher
capacities
(1) FE port
Step 2 Connect the other end of the network cable to the Ethernet port on the switch.
